13.4-ton heavy single drum vibratory roller designed for the European market. Cummins 115 kW engine at 2,200 rpm rated speed, EU Stage V and EPA Tier 4 Final emission compliance. 2,130 mm working width, overall 5,990 × 2,300 × 2,990 mm. Working speed 0-11.0 km/h, gradeability 50%, vibration frequencies 30/35 Hz dual-frequency. Full hydraulic double-drive. Compaction of base layer, sub-base, and rock fill on highways, railways, airports, harbors, dams, and industrial sites.

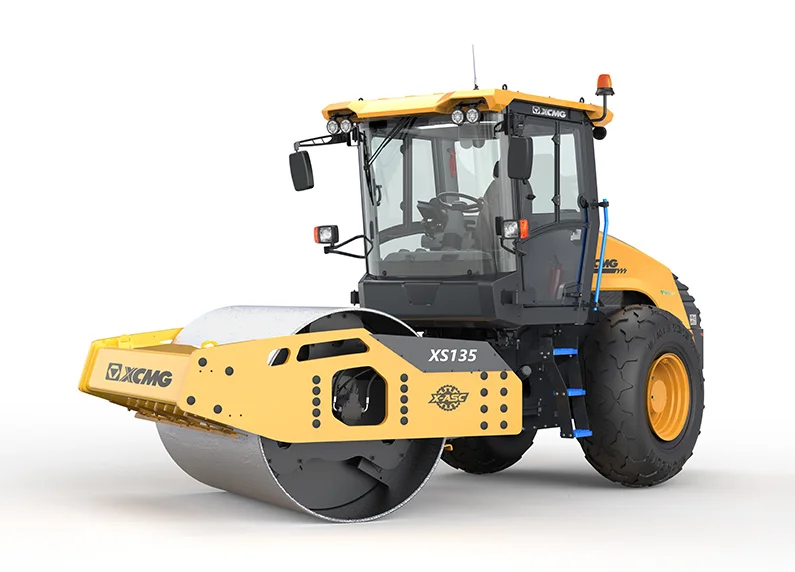

The XCMG XS135 (XS135 / XS135PD smooth-and-padfoot family) is a 13.4-ton heavy single drum vibratory roller with Cummins 115 kW engine at 2,200 rpm and EU Stage V / EPA Tier 4 Final emission compliance — designed for the European market.
Operating weight 13,400 kg (smooth drum), working width 2,130 mm, overall 5,990 × 2,300 × 2,990 mm. Working speed 0-11.0 km/h, gradeability 50%, vibration frequencies 30/35 Hz dual-frequency. Full hydraulic double-drive layout.
Specifically designed for the European market — EU Stage V and EPA Tier 4 Final emission compliance opens EU, UK, US, and Canada market access. Compaction of base layer, sub-base, and rock fill on highways, railways, airports, harbors, dams, and industrial sites. Sits above the 12-13 t XS125 / XS125PD class as the next step up in the XCMG single-drum vibratory roller line — same Cummins 115 kW engine as the Stage V XS125 sibling but heavier 13.4 t static weight delivers more compaction force per pass on base-layer and rock-fill work. Stage V variant offering higher static weight for projects where the XS125 class is undersized.
