24.8-ton landfill backfill compactor with 3,820 mm working width. Cummins six-cylinder water-cooled diesel rated 194 kW at 2,200 rpm, EU Stage III emission. Designed and accepted per JB/T 10668-2018 Sanitary Landfill Compactor and Q/XGDL 22006-2013. Tooth-drum geometry breaks, crushes, and compacts mixed solid waste in one pass — raises effective tonnage per cubic meter of cell space and extends landfill service life. 8,365 × 3,820 × 3,850 mm — fits standard low-bed transport for inter-site relocation.

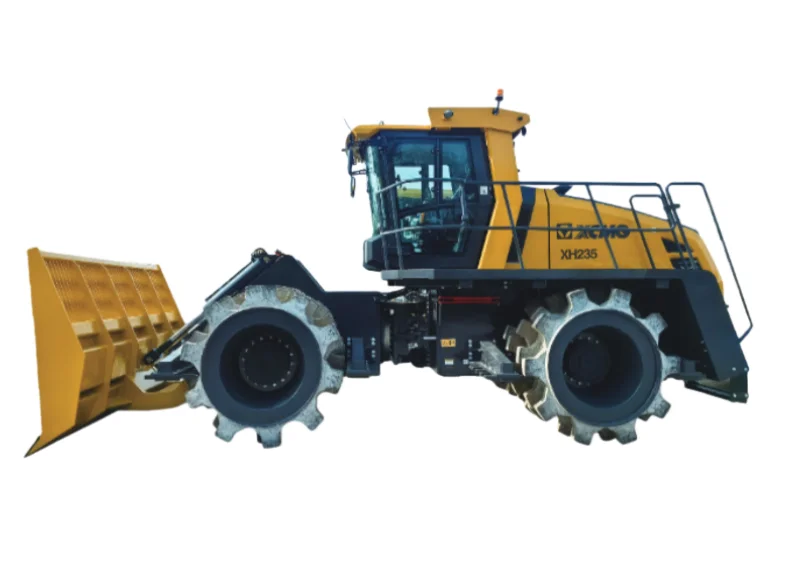

The XCMG XH235 is a 24.8-ton landfill backfill compactor with a 3,820 mm working width and 194 kW Cummins six-cylinder diesel — built for bulldozing and compacting solid waste fill at sanitary landfills to reduce land occupation and extend landfill service life.
The XH235 is designed and accepted per JB/T 10668-2018 Sanitary Landfill Compactor and Q/XGDL 22006-2013. The 3,820 mm wide chamber-tooth drums break, crush, and compact mixed solid waste in a single pass, raising effective tonnage per cubic meter of cell space. 194 kW at 2,200 rpm gives the traction needed for slope work on active tipping faces; EU Stage III emission rating fits exports outside Tier 4 markets. 8,365 mm overall length and 3,850 mm height match standard low-bed transport for inter-site relocation. Suited for municipal solid waste landfill operators, mixed industrial waste sites, and contractors building cell capacity expansions where pure earthmoving compactors lack the tooth geometry for waste tearing.
