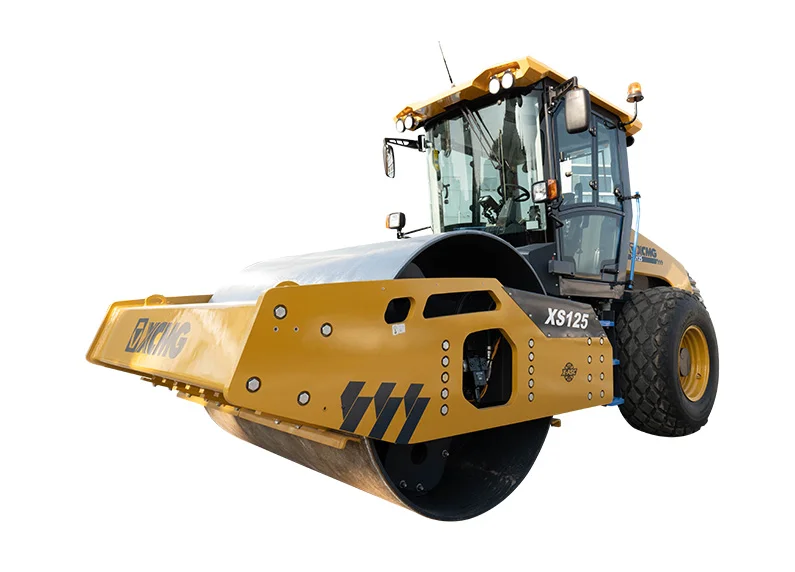

Single drum vibratory roller designed for the European market: XS125 smooth drum at 12,400 kg; XS125PD padfoot at 13,250 / 13,770 kg (two configurations). Cummins F3.8 (Foton-built ISF3.8) engine, 115 kW at 2,200 rpm, EU Stage V emission compliance. 2,130 mm working width. XS125 overall 5,990 × 2,300 × 2,990 mm; XS125PD overall 5,990 × 2,300 × 3,145 mm. Working speeds 0-11.0 (smooth) / 0-11.85 (padfoot) km/h. Gradeability 60 / 45%, vibration frequencies 30/35 Hz dual-frequency. Full hydraulic double-drive. Base layer, sub-base, and rock-fill compaction.
The XCMG XS125 / XS125PD (Stage V) is a heavy single drum vibratory roller — 12.4 t smooth XS125 or 13.25-13.77 t padfoot XS125PD — with F3.8 (Cummins ISF3.8) 115 kW engine at 2,200 rpm and EU Stage V emission compliance, designed for European market base layer and rock-fill compaction.
Operating weight 12,400 kg (smooth XS125) or 13,250 / 13,770 kg (XS125PD padfoot, two configurations). Working width 2,130 mm. Smooth XS125 overall 5,990 × 2,300 × 2,990 mm; padfoot XS125PD 5,990 × 2,300 × 3,145 mm. Working speeds 0-11.0 km/h (smooth) / 0-11.85 km/h (padfoot). Gradeability 60% (smooth) / 45% (padfoot), vibration frequencies 30/35 Hz dual-frequency.
Full hydraulic double-drive layout. Designed specifically for the European market — EU Stage V emission compliance gates equipment access to EU, UK, and other Stage V markets. Compaction of base layer, sub-base, and rock fill on highways, railways, airports, harbors, dams, and industrial sites. F3.8 (Cummins ISF3.8) parts pool shared with the Stage III XS125 sibling's Foton engine — same engine family, different emission-control hardware.
