12.6 t Single Drum Vibratory Roller — Dongkang 93 kW EU Stage II
12.6-ton heavy single drum vibratory roller (smooth drum XS125 and padfoot XS125PD on shared chassis). Dongfeng Cummins (Dongkang) 93 kW engine at 2,200 rpm rated speed, EU Stage II emission compliance. 2,130 mm working width, overall 6,010 × 2,300 × 3,080 mm. Multi-step working speeds 5.2, 6.2, 8.2, 11 km/h. Gradeability 53%, vibration frequencies 30/35 Hz dual-frequency. Applicable altitude up to 3,000 m, ambient temperature -10 to +45 C. Compaction of base layer, sub-base, and rock fill on roads, railways, airports, harbors, dams, and industrial sites.

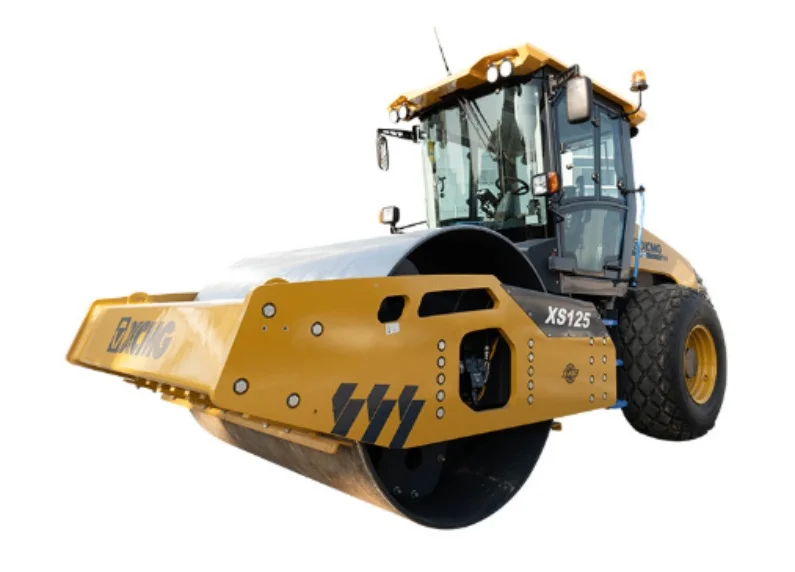

The XCMG XS125 / XS125PD (Stage II) is a 12.6-ton heavy single drum vibratory roller with Dongfeng Cummins (Dongkang) 93 kW engine at 2,200 rpm and EU Stage II emission compliance — sized for base layer and rock-fill compaction on infrastructure work.
Operating weight 12,600 kg, working width 2,130 mm, overall 6,010 × 2,300 × 3,080 mm. Working speed range with multi-step gearing: 5.2, 6.2, 8.2, and 11 km/h. Gradeability 53%, vibration frequencies 30/35 Hz dual-frequency. Applicable altitude up to 3,000 m, ambient temperature -10 to +45°C — fits most temperate-zone and warm-climate projects.
Full hydraulic double-drive layout. Sized for compaction of base layer, sub-base layer, and rock fill on roads, railways, airports, harbors, dams, and industrial sites. The XS125PD padfoot variant handles cohesive soils and clay where kneading penetration matters. Dongkang (Dongfeng Cummins) is the joint-venture Cummins manufacturing partner in China — engine has Cummins-equivalent parts pool and global service network access. Stage II variant in the XS125 family for markets where Stage II is the operative emission rule.
Five aspects of the XS125 / XS125PD (Stage II) that fit it to base-layer and rock-fill compaction work in Stage II markets: Dongkang Cummins powertrain, EU Stage II emission compliance, multi-step working speeds, environmental operating envelope, and family position.
Dongkang 93 kW (125 hp class) engine at 2,200 rpm rated speed. Dongkang is the joint-venture Cummins manufacturing partner in China — engine has Cummins-equivalent parts pool and global service network access. Lower-cost engine option than direct-imported Cummins variants for cost-sensitive markets.
EU Stage II emission compliance — fits markets where Stage II is the operative emission rule (mostly secondary export destinations). Lowest-cost emission variant in the XS125 family. Sibling XS125 Stage III and Stage V variants target stricter markets at higher cost.
Multi-step gear-selected working speeds: 5.2, 6.2, 8.2, 11 km/h. Discrete speed steps let the operator hold a specified compaction speed per spec without speed drift — important on base-layer specifications calling for fixed-speed passes. 53% gradeability covers slope and ramp work.
Applicable altitude up to 3,000 m, ambient temperature -10 C to +45 C. Fits most temperate-zone and warm-climate projects — including Southeast Asia, Middle East, and Africa. Higher-altitude (above 3,000 m) projects need engine de-rating or sister model selection.
Stage II variant in the XS125 / XS125PD family. Siblings XS125 (Stage III, Foton 104 kW) and XS125 (Stage V, ~115 kW) target stricter emission markets. XS125PD welded padfoot drum handles cohesive soils where kneading penetration matters; smooth-drum XS125 targets granular and rock fill.
| Parameter | Unit | Value |
|---|---|---|
| Engine | - | Dongkang (Dongfeng Cummins) |
| Rated power | kW | 93 |
| Rated speed | r/min | 2200 |
| Emission | - | EU Stage II |
| Operating weight | kg | 12600 |
| Working width | mm | 2130 |
| Dimensions (L×W×H) | mm | 6010×2300×3080 |
| Working speed | km/h | 5.2; 6.2; 8.2; 11 |
| Gradeability | % | 53 |
| Vibration frequency | Hz | 30/35 |
