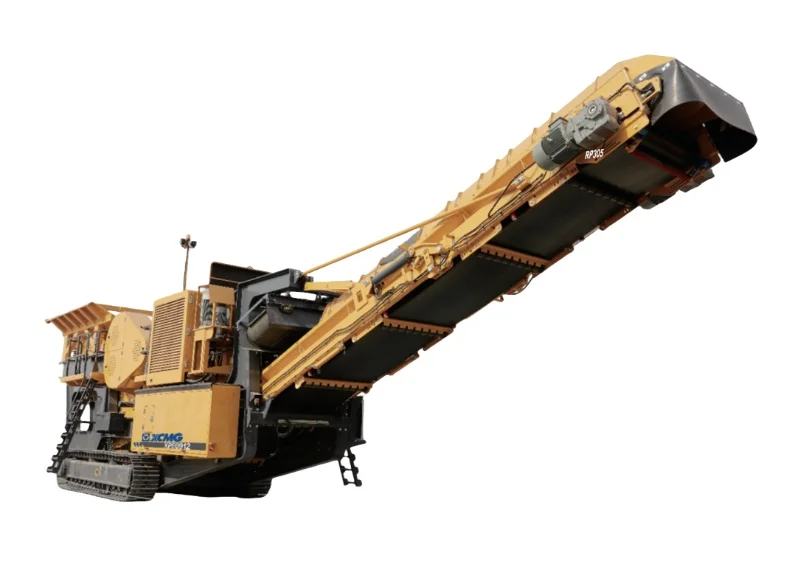

160–500 t/h XCMG Movable Jaw Crushing Station — Deep-Cavity Chamber
Movable jaw crushing station with on-board functions for receiving, crushing, and conveying. 160–500 t/h handling capacity, 70.83 t curb weight, 15870 × 8263 × 4472 mm working envelope. Deep-cavity jaw chamber, touchscreen control with graphic interface, optimised engine power matching. 1 km/h travel speed, 14° gradeability. Self-contained primary breaker for rock, ores, aggregates, and open-pit mine feed.
The XCMG XPE0912 is a movable jaw crushing station with on-board functions for receiving, crushing, and conveying — a self-contained primary breaker for rock, ores, aggregates, and open-pit mine feed. 160–500 t/h handling capacity, 70.83 t curb weight, 15870 × 8263 × 4472 mm working envelope. 1 km/h travel speed, 14° gradeability.
The deep-cavity jaw chamber suits coarse run-of-quarry feed without pre-screening — slab-shaped rock that would bridge a shallow chamber clears the deep-cavity geometry. On-board touchscreen control with graphic interface for chamber settings, feed-belt speed, and discharge gap. Optimized engine power matching adjusts diesel load to chamber demand rather than running flat-out.
The XPE0912 sits above the XPE0810E (140–300 t/h, 44 t curb, external electric power) in the XCMG movable jaw line. 70.83 t curb weight versus 44 t reflects larger chamber, on-board diesel and own-fuel autonomy. Suited for open-pit mine bench rotation, aggregate quarries with advancing working faces, and assembly-line configuration with downstream XPY cone stations for closed-loop crushing. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
Five points on the XPE0912 that fit it to high-throughput movable primary crushing: deep-cavity chamber, touchscreen, engine matching, line position, and sector fit.
Deep-cavity jaw chamber suits coarse run-of-quarry feed without pre-screening. Slab-shaped or elongated rock that would bridge a shallow chamber clears the deep-cavity geometry — common in sedimentary stone, demolition concrete, and limestone quarry feed.
On-board touchscreen with graphic interface for chamber settings, feed-belt speed, and discharge gap. Optimised engine power matching adjusts diesel load to chamber demand rather than running flat-out — fuel saving over a sustained shift where feed presentation is uneven.
160–500 t/h handling capacity. Tracked carrier with 1 km/h travel speed and 14° gradeability — relocates between benches under own power without trailers or escort.
Steps up from the XPE0810E (140–300 t/h, 44 t curb weight, external electric power). 70.83 t curb weight versus 44 t reflects larger chamber, on-board diesel and own-fuel autonomy. Specify XPE0912 for sites without grid power or where independent operation matters; specify XPE0810E for grid-powered pits or those running existing rental gensets.
Specified for open-pit mine bench rotation, aggregate quarries with advancing working faces, and assembly-line crushing setups — XPE0912 primary feeding downstream XPY cone stations for closed-loop secondary/tertiary crushing in mobile production lines.
| Parameter | Unit | Value |
|---|---|---|
| Overall weight | kg | 70830 |
| Handling capacity | t/h | 160–500 |
| Working dimensions (L×W×H) | mm | 15870 × 8263 × 4472 |
| Travel speed | km/h | 1 |
| Gradeability | ° | 14 |
