16-ton medium pneumatic tire roller. Cummins 104 kW rated power, EU Stage III emission compliance. Drum (tire roll) width 2,075 mm, wheelbase 3,900 mm, overall 5,100 × 2,175 × 3,000 mm, 0-19 km/h working speed, 30% gradeability. Inflatable tires impart a kneading action on the asphalt aggregate that seals the surface — a finish behavior steel-drum rollers cannot replicate. Sized for almost all surface-layer compaction work on asphalt paving projects: highway top course, urban road surface, parking lot mat, airport apron.

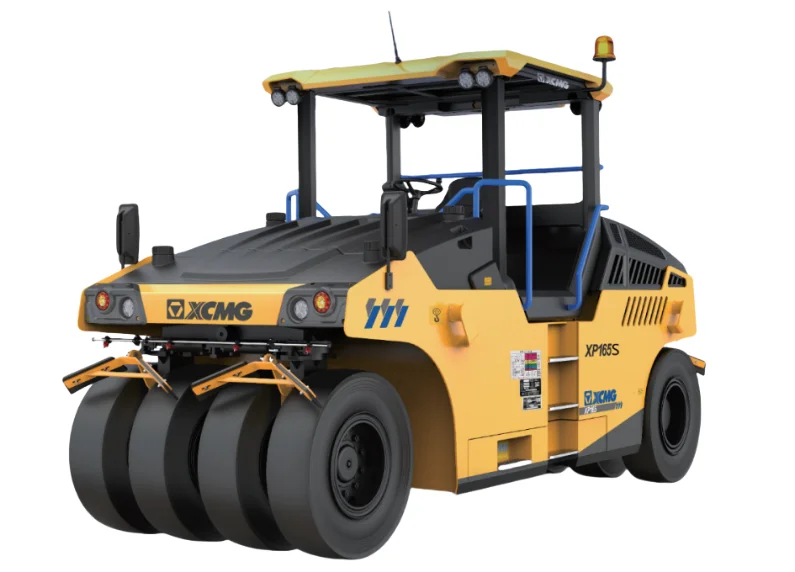

The XCMG XP165S is a 16-ton medium pneumatic tire roller with Cummins engine and EU Stage III emission compliance, sized for asphalt surface compaction work where rubber-tire kneading is needed for seal and finish.
Operating weight 16,000 kg, Cummins 104 kW rated power, drum width 2,075 mm, wheelbase 3,900 mm, dimensions 5,100 × 2,175 × 3,000 mm, working speed 0–19 km/h, gradeability 30%. Inflatable tires impart a kneading action on the crushed material, improving sealing of the asphalt concrete paving layer — a finish behavior steel-drum rollers cannot fully replicate.
Fit for almost all surface-layer compaction work on asphalt paving projects: highway top course, urban road surface, parking lot mat, airport apron. Typically paired with a tandem steel-drum roller for sequence work — XS125T or XD135T-class lead roller, XP165S finishing rubber-tire pass. Medium-size class for contractors who don't need the bigger XP265S (26.5 t) or XP305S (30 t) on smaller paving projects.
