Mini Milling Machine — 0.5 m Width, Cummins 115 kW, EU Stage V
500 mm mini milling machine for asphalt pavement maintenance and large-machine auxiliary work. 500 mm milling width, 210 mm maximum milling depth, 60-cutter rotor. Cummins 115 kW diesel engine certified to EU Stage V — tightest emission in the XCMG mini milling lineup. 8,900 kg operating weight, 8,000 kg transport weight. Transport dimensions 7,300 × 1,740 × 2,650 mm. Optional hydraulic hammer for pavement breaking, optional wheel for roadside rumble strip milling. Pick when importing jurisdiction requires Stage V certification.

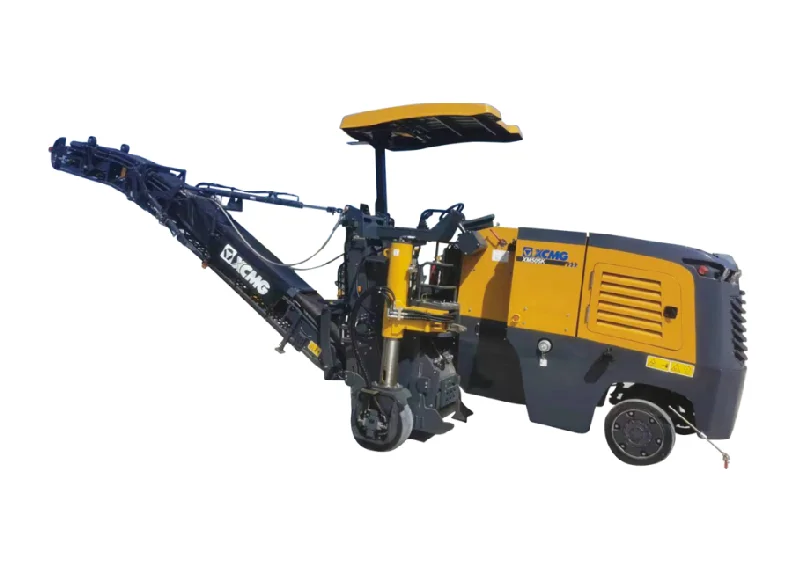

The XCMG XM505K (Stage V) is a mini milling machine for asphalt pavement maintenance — sized for municipal road work and as auxiliary machinery for large milling machine crews. It handles small-scale excavation and renovation of asphalt concrete pavement on highways, urban roads, airports, freight yards, and parking lots; removes road congestion, wave patterns, mesh cracks, and ruts; roughens cement pavement and mills surface faulting; and mills along road sides and manhole covers.
Powered by a Cummins 115 kW diesel engine certified to EU Stage V — the tightest emission standard in the XCMG mini milling lineup. Milling width 500 mm, maximum milling depth 210 mm, 60-cutter rotor. Operating weight 8,900 kg, transport weight 8,000 kg. Transport dimensions 7,300 × 1,740 × 2,650 mm.
Within the XCMG 500 mm mini class, the XM505K Stage V trades up from the XM505 (92 kW Shangchai, CN III, 5.9 t) — 25 percent more rated power, deeper 210 mm cut, Stage V emission for European import. Optional hydraulic hammer adds pavement breaking; optional wheel adds roadside rumble strip milling. Pick XM505K Stage V when the importing jurisdiction requires Stage V certification.
CIF shipping available. Genuine XCMG parts and service through me-equipment.com.
Five aspects of the XM505K Stage V that fit it to 0.5-meter mini milling work in Stage V markets: rotor configuration, Cummins Stage V engine, sibling positioning, optional attachments, and parts compatibility.
500 mm milling width, 210 mm maximum milling depth, 60-cutter rotor. 17 percent deeper cut than the XM505 sibling (180 mm) and 6 more cutters (60 vs 54). Same cut depth as the XM505K Stage III sibling. Sized for municipal road maintenance, large-machine auxiliary work, and edge milling along well covers.
Powered by a Cummins 115 kW diesel engine certified to EU Stage V — tightest emission standard in the XCMG XM5xx mini lineup. 25 percent more rated power than the XM505 (92 kW CN III) and 19 percent more than the XM505K Stage III (97 kW DCEC). Pick XM505K Stage V when importing into jurisdictions enforcing Stage V emission compliance.
8,900 kg operating weight, 8,000 kg transport weight. 51 percent heavier than the XM505 (5,900 kg) for the deeper 210 mm cut and higher 115 kW power. Transport dimensions 7,300 × 1,740 × 2,650 mm — 4.2 m longer envelope than the XM505 (3,125 mm length) for the bigger conveyor and engine package.
Optional hydraulic hammer adds pavement breaking capability — one machine handles both milling and breaking on small repair jobs. Optional wheel attachment mills roadside rumble strips for highway safety contracts. Single machine covers three distinct work types on small-crew municipal contracts.
Cutters, hold-downs, conveyor parts, and electrical components share core part numbers with other XCMG milling machines — direct overlap with the chassis-twin XM505K Stage III, plus parts pool with the XM505 and XM505EP siblings in the XM5xx mini class. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Engine | - | Cummins |
| Rated Power | kW | 115 |
| Emission | - | EU Stage V |
| Weight in transportation state | kg | 8000 |
| Weight in work state | kg | 8900 |
| Milling width | mm | 500 |
| Max. milling depth | mm | 210 |
| Number of cutters | - | 60 |
| Transport dimensions (L×W×H) | mm | 7300×1740×2650 |
Tell us your spec, budget, and destination port. You'll get a matching shortlist with photos, working videos, and pricing within 24 hours.
