Large cold milling machine with EU Stage V emission compliance. 2,000 mm milling width, 330 mm max depth, 146-cutter drum. Cummins 447 kW diesel engine. 30,500 kg working weight, 28,500 kg in transport. Transport dimensions 12,641 mm long, 2,712 mm wide, 3,000 mm tall. Same drum, weight, and 447 kW base power as the CN Stage III sibling — choose this variant for project work in EU jurisdictions and other Stage V-aligned markets requiring the stricter emission profile.

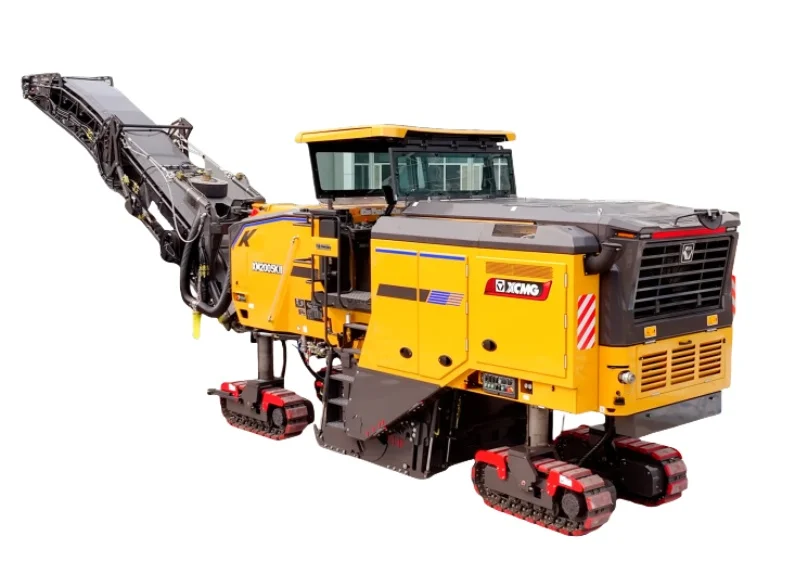

The XM2005K (Stage V) is the EU Stage V emission-compliant variant of the 2 m XCMG large cold milling machine — for project work in European jurisdictions and other markets requiring Stage V certification. 2,000 mm milling width, 330 mm max depth, 146-cutter drum. Cummins 447 kW diesel engine.
Same drum, weight, and base power as the CN Stage III sibling (XM2005K Stage III) — the differentiation is emission compliance and transport width. Transport dimensions 12,641 mm long, 2,712 mm wide, 3,000 mm tall (versus 1,406 mm transport width on the Stage III variant — Stage V uses a different transport profile). 30,500 kg working weight, 28,500 kg in transport.
Typical use: large-area asphalt overlay removal on highway and airport surfaces, bitumen wave and netting crack cleanup, wheel-track milling, groove cutting, fine concrete pavement milling, misaligned-layer correction. Same job envelope as the Stage III sibling.
Choose the Stage V variant when project specifications require EU Stage V emission compliance (European Union, UK, and other Stage V-aligned jurisdictions). Choose the Stage III sibling when project tender accepts CN Stage III certification and the lower-cost emission profile fits the budget.
