Asphalt pavement maintenance milling machine bridging large-class and medium-class characteristics. 1,500 mm standard milling width, optionally fitted with a wider rotor for larger working widths. 330 mm maximum milling depth — the deepest cut in the XM1xxxF medium lineup. 118-cutter rotor. Cummins 164 kW diesel engine certified to EC Stage IIIA, US Tier 3, and China Stage III. 20,500 kg operating weight, 22,000 kg transport weight. Transport dimensions 11,200 × 2,320 × 3,000 mm.

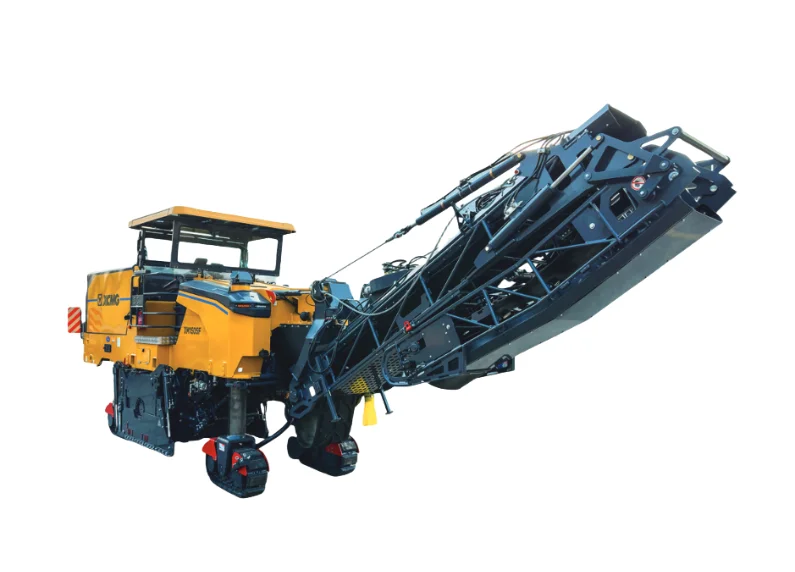

The XCMG XM1505F is an asphalt pavement maintenance milling machine for municipal road maintenance, rural road repair, and overhaul construction with deep digging and patching work. It bridges large-class and medium-class characteristics — standard 1.5 m milling width, optionally fitted with a wider milling rotor for larger working widths.
Powered by a Cummins 164 kW diesel engine certified to EC Stage IIIA, US Tier 3, and China Stage III — three emission certifications covering the major export markets in one configuration. Maximum milling depth 330 mm, 118-cutter rotor. Operating weight 20,500 kg, transport weight 22,000 kg. Transport dimensions 11,200 × 2,320 × 3,000 mm.
The XM1505F has the deepest cut envelope (330 mm) in the medium-class XM1xxxF lineup and the highest cutter count (118) — the wider rotor and deeper cut suit municipal road maintenance fleets handling both surface renovation and deeper structural patches on rural and overhaul work. Pick XM1505F when the project mix includes deep-digging repair and the three-region emission compliance simplifies regulatory filings.
CIF shipping available. Genuine XCMG parts and service through me-equipment.com.
