New Energy Mini Milling Machine — 0.5 m Width, 151 kWh Battery, Electric Drive
Electric-drive mini milling machine for asphalt pavement preservation. 500 mm maximum milling width, 180 mm maximum milling depth, maximum operating speed 36 m/min. 151 kWh battery, 24 V rated voltage. 5,725 kg operating weight — matches diesel XM505 on flatbed transport class. Overall dimensions 3,230 × 1,710 × 2,130 mm. Used for municipal highway upkeep, large-machine auxiliary work, manhole cover edge milling. Optional hydraulic breaker and attachable rumble drum.

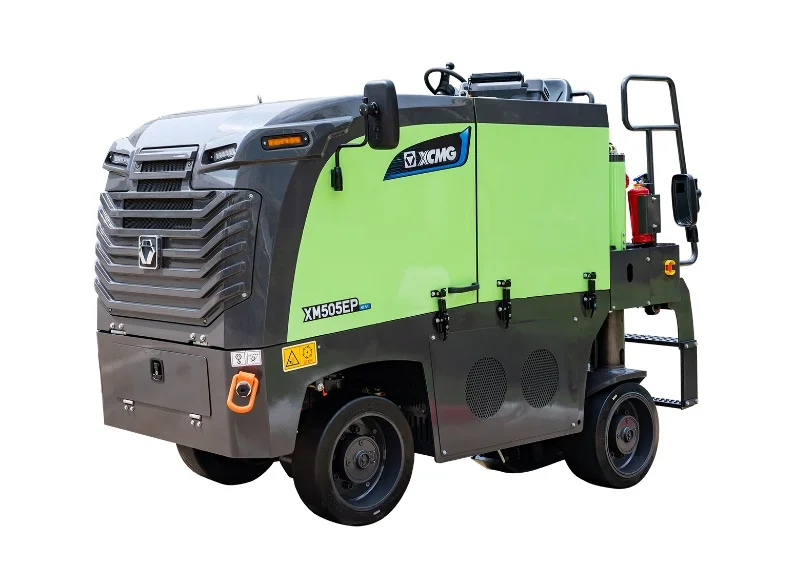

The XCMG XM505EP II is an electric-drive new energy mini milling machine for asphalt pavement preservation — sized for municipal highway upkeep and as auxiliary equipment for large milling machines. It enables localized milling and repair of asphalt concrete surface layers on highways, urban roads, airports, garages, and parking lots; removes road surface deformations including heave, wave-like undulations, cross-slope irregularities, and track imprints; mills along manhole cover edges; and supports optional hydraulic breaker for pavement milling and attachable rumble drum for rumble strip work.
Battery capacity 151 kWh, rated voltage 24 V. Maximum milling width 500 mm, maximum milling depth 180 mm, maximum operating speed 36 m/min. Operating weight 5,725 kg. Overall dimensions 3,230 × 1,710 × 2,130 mm.
The XM505EP II matches the diesel XM505 sibling on the 500 mm × 180 mm × 5.7 t form factor — same flatbed transport class, same small-area patching role — but replaces the Shangchai diesel with an electric drivetrain. Pick XM505EP when project work is in zero-emission urban zones, indoor garage patching, or municipal contracts where diesel exhaust is restricted.
CIF shipping available. Genuine XCMG parts and service through me-equipment.com.
Five aspects of the XM505EP that fit it to 0.5-meter zero-emission urban mini milling work: electric drivetrain, compact rotor, indoor-garage compatibility, optional attachments, and parts compatibility.
151 kWh battery pack at 24 V rated voltage. No diesel exhaust, no DEF logistics, no engine noise. Pick XM505EP when project work is in zero-emission urban zones, indoor garage pavement, or municipal contracts where diesel exhaust is restricted during city-center hours.
500 mm maximum milling width, 180 mm maximum milling depth, 36 m/min maximum operating speed. Identical cut envelope to the diesel XM505 sibling — fleets running both electric and diesel mini millers can rotate them across the same project mix without changing the production plan.
5,725 kg operating weight. Overall dimensions 3,230 × 1,710 × 2,130 mm — fits on a standard flatbed without low-bed permit overhead. 0.3 percent lighter than the diesel XM505 sibling (5,900 kg) despite carrying the battery pack — distinct from heavier electric construction machines that penalize transport class.
Specified for asphalt concrete surface layer milling on highways, urban roads, airports, garages, and parking lots. Indoor garage compatibility is the binding selection criterion — diesel mini millers cannot operate in indoor environments without exhaust extraction infrastructure. Manhole cover edge milling, deformation removal, optional hydraulic breaker and rumble drum.
Cutters, hold-downs, conveyor parts share core part numbers with other XCMG milling machines — direct overlap with the XM505, XM505K, and XM505K Stage III diesel siblings within the XM5xx mini class. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Battery Capacity | kWh | 151 |
| Rated Voltage | V | 24 |
| Maximum Milling Width | mm | 500 |
| Maximum Milling Depth | mm | 180 |
| Maximum Operating Speed | m/min | 36 |
| Operating Weight | kg | 5725 |
| Dimension (L×W×H) | mm | 3230×1710×2130 |
