Mini Milling Machine — 0.5 m Width, Shangchai 92 kW, 5.9 t Flatbed Class
500 mm mini milling machine for asphalt pavement maintenance. 500 mm milling width, 180 mm maximum milling depth, 54-cutter rotor. Shangchai 92 kW diesel engine, China Stage III emission. 5,900 kg operating weight, 5,650 kg transport weight — fits on a standard flatbed without low-bed permit overhead. Transport dimensions 3,125 × 1,715 × 2,200 mm. Used for municipal road maintenance, small-area asphalt patching, edge milling along well covers; optional hydraulic pick and rumble strip drum.

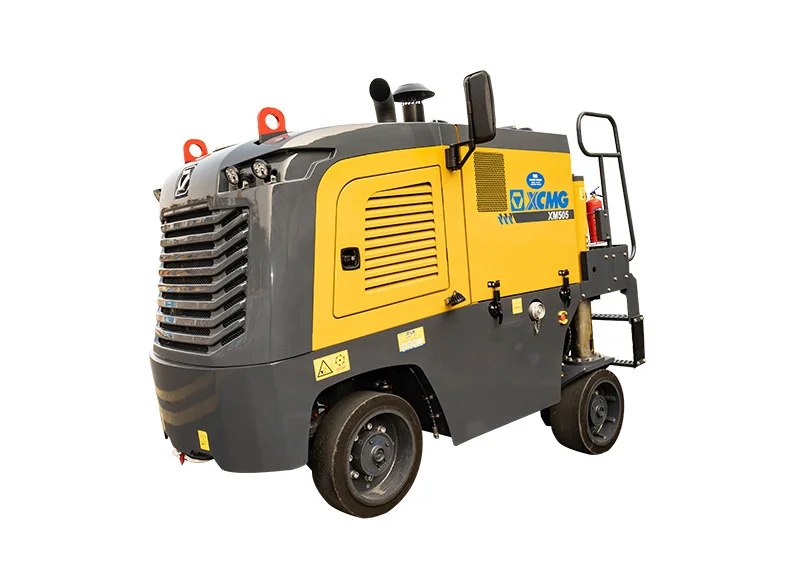

The XCMG XM505 is a 500 mm mini milling machine for asphalt pavement maintenance — sized for municipal highway maintenance and used as auxiliary machinery alongside large milling machines on big production crews. Functions include small-area excavation and renovation of asphalt concrete pavement on highways, urban roads, airports, freight yards, and parking lots; removal of upheavals, oil waves, reticulated lines, and ruts; cement pavement roughening and surface faulting milling; edge milling along well covers.
Powered by a Shangchai 92 kW diesel engine certified to China Stage III. Milling width 500 mm, maximum milling depth 180 mm, 54-cutter rotor. Operating weight 5,900 kg, transport weight 5,650 kg. Transport dimensions 3,125 × 1,715 × 2,200 mm — fits on a standard flatbed without low-bed permit overhead.
Optional hydraulic pick adds pavement breaking capability; optional rumble drum mills roadside rumble strips. Pick XM505 when the project mix is municipal patching and side work, the importing jurisdiction accepts CN Stage III, and a 5.9 t machine fits the daily transit logistics.
CIF shipping available. Genuine XCMG parts and service through me-equipment.com.
Five aspects of the XM505 that fit it to 0.5-meter municipal mini milling and large-machine auxiliary work: compact rotor, Shangchai engine, flatbed transport class, optional attachments, and parts compatibility.
500 mm milling width, 180 mm maximum milling depth, 54-cutter rotor. Sized for small-area patching, edge milling, and large-machine auxiliary work — fills the cut profile around well covers, transitions, and edge details where 1.0 m+ machines do not fit.
Powered by a Shangchai 92 kW diesel engine certified to China Stage III. Lowest engine power and simplest emission profile in the XCMG XM5xx mini class — pick XM505 when importing jurisdiction accepts CN III and lifecycle fuel cost is a binding fleet constraint vs the higher-output XM505K (115 kW Stage V) and XM505K Stage III (97 kW DCEC).
5,900 kg operating weight, 5,650 kg transport weight. Fits on a standard flatbed trailer without low-bed permit overhead — fleet operators running daily site rotations across municipal districts skip the escort vehicle and overweight permit logistics. Transport envelope 3,125 × 1,715 × 2,200 mm.
Optional hydraulic pick attachment adds pavement breaking capability — one machine handles both milling and breaking on small repair jobs. Optional rumble strip drum mills roadside rumble strips for highway safety contracts. Single machine covers three distinct work types on small-crew municipal contracts.
Cutters, hold-downs, conveyor parts, and electrical components share core part numbers with other XCMG milling machines — direct overlap with the XM505K, XM505K Stage III, and XM505EP siblings within the XM5xx mini class. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Engine | - | Shangchai |
| Rated Power | kW | 92 |
| Emission | - | China Stage III |
| Weight in transportation state | kg | 5650 |
| Weight in work state | kg | 5900 |
| Milling width | mm | 500 |
| Max. milling depth | mm | 180 |
| Number of cutters | - | 54 |
| Transport dimensions (L×W×H) | mm | 3125×1715×2200 |
