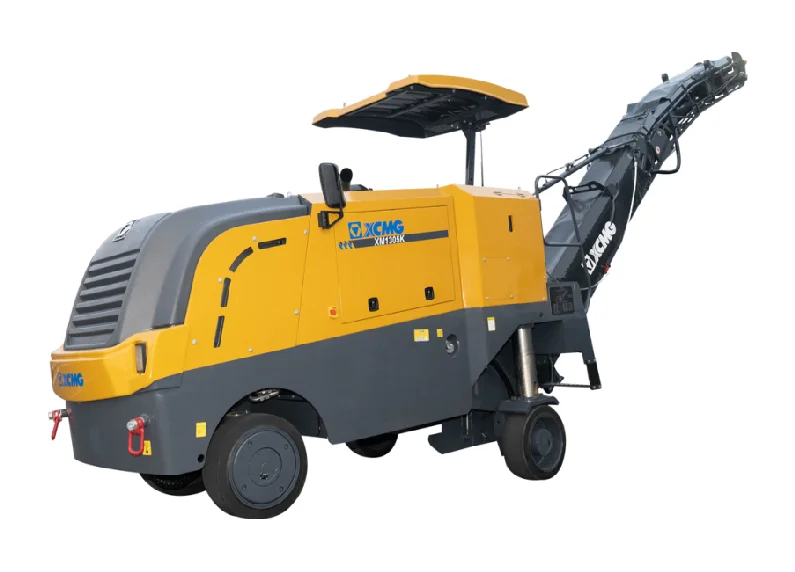

Medium Milling Machine — 1.3 m Width on 15 t Chassis, Shangchai 177 kW
Medium milling machine with 1,300 mm milling width on a 15-ton chassis. 300 mm maximum milling depth, 86-cutter rotor. Shangchai 177 kW diesel engine certified to China Stage III. 15,400 kg operating weight, 14,700 kg transport weight. Transport dimensions 9,575 × 2,295 × 2,690 mm. Shares chassis dimensions with the XM1005K but mounts a 30%-wider 1.3 m rotor — pick XM1305K when project work needs wider cut at the lower 15 t transport class.
The XCMG XM1305K is a medium milling machine for asphalt concrete pavement repair and renovation on highways, national and provincial roads, freight yards, parking lots, and residential communities. It removes road congestion, wave patterns, mesh cracks, and ruts; excavates pavement pits and trenches; roughens cement pavement; and mills surface faulting.
Powered by a Shangchai 177 kW diesel engine certified to China Stage III. Milling width 1,300 mm, maximum milling depth 300 mm, 86-cutter rotor. Operating weight 15,400 kg, transport weight 14,700 kg. Transport dimensions 9,575 × 2,295 × 2,690 mm.
The XM1305K shares its 14.7 t chassis with the XM1005K (same engine, weight, and 9,575 mm length) but adds a 1.3 m rotor — 30 percent wider cut on the same chassis. Pick XM1305K when project work needs the 1.3 m cut at lower transport class than the 22 t XM1305F, and when CN Stage III emission compliance is sufficient for the importing market.
CIF shipping available. Genuine XCMG parts and service through me-equipment.com.
Five aspects of the XM1305K that fit it to 1.3-meter medium milling work on a lighter chassis: wider rotor on shared chassis, Shangchai engine, sibling positioning, application coverage, and parts compatibility.
1,300 mm milling width, 300 mm maximum milling depth, 86-cutter rotor. 30 percent wider cut than the chassis-twin XM1005K (1,000 mm) — same 9,575 × 2,295 × 2,690 mm transport envelope, same 177 kW Shangchai engine, but wider rotor and 6 more cutters (86 vs 80).
Powered by a Shangchai 177 kW diesel engine certified to China Stage III. Same engine as the XM1005K but without the EC Stage IIIA export certification — pick XM1305K when the importing jurisdiction accepts CN Stage III. Lower regulatory paperwork burden than the EU Stage 4a XM1205F / XM1305F variants.
15,400 kg operating weight, 14,700 kg transport weight. 30 percent lighter than the wider-class sibling XM1305F (22,000 kg) at the same 1.3 m cut width and 300 mm depth — XM1305F carries higher power (206 kW vs 177 kW), Stage 4a emission, and the intelligent control suite. Pick XM1305K when project work allows lower advance rate for the chassis weight savings.
Specified for repair and renovation of asphalt concrete pavements on highways, national and provincial roads, freight yards, parking lots, and residential communities. Removes road congestion, wave patterns, mesh cracks, and ruts; excavates pavement pits and trenches; roughens cement pavement.
Cutters, hold-downs, conveyor parts, and electrical components share core part numbers with other XCMG milling machines — direct chassis-parts overlap with the XM1005K. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Engine | - | Shangchai |
| Rated Power | kW | 177 |
| Emission | - | CN Stage III |
| Weight in transportation state | kg | 14700 |
| Weight in work state | kg | 15400 |
| Milling width | mm | 1300 |
| Max. milling depth | mm | 300 |
| Number of cutters | - | 86 |
| Transport dimensions (L×W×H) | mm | 9575×2295×2690 |
