Medium Milling Machine — 1.3 m Width, Shangchai 206 kW, EU Stage 4a
Front-conveying medium milling machine with 1,300 mm milling width. 300 mm maximum milling depth, 106-cutter rotor. Shangchai 206 kW diesel engine certified to EU Stage 4a and China Stage III. 22,000 kg operating weight, 20,500 kg transport weight. Transport dimensions 9,950 × 2,280 × 3,000 mm. Specified with intelligent control, load limiting, water sprinkling automation, engine high-temperature protection, and construction data management for highway, urban, airport, and freight yard asphalt overlay programs.

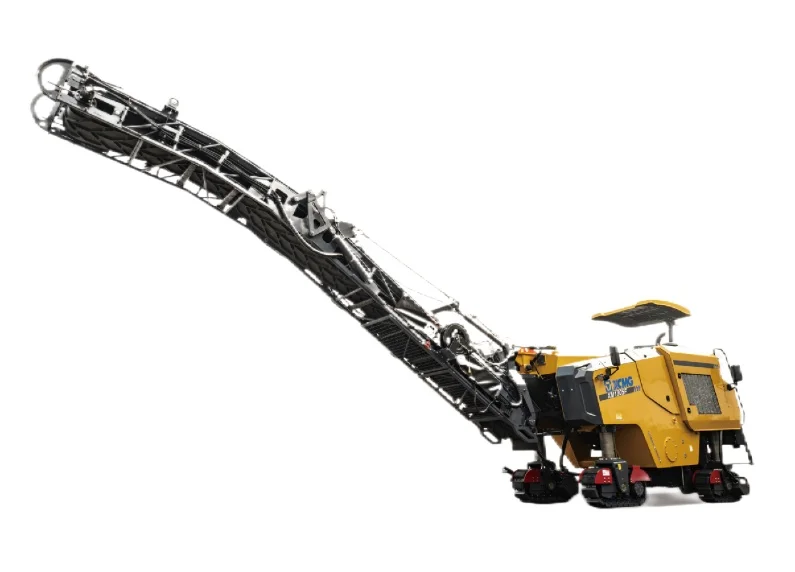

The XCMG XM1305F is a front-conveying medium milling machine with 1,300 mm milling width. It is used for asphalt concrete pavement excavation and renovation on highways, urban roads, airports, freight yards, and parking lots: removing road congestion, wave patterns, mesh cracks, and ruts; trench and pit excavation; cement pavement roughening; and surface faulting correction.
Powered by a Shangchai 206 kW diesel engine certified to EU Stage 4a and China Stage III. Maximum milling depth 300 mm, 106-cutter rotor. Operating weight 22,000 kg, transport weight 20,500 kg. Transport dimensions 9,950 × 2,280 × 3,000 mm.
Specified with intelligent control, load limiting, water sprinkling automation, engine high-temperature protection, and construction data management. Pick XM1305F over the XM1205F when project work needs the wider 1.3 m cut and the 7.3 percent higher engine power (206 kW vs 192 kW) to maintain advance rate at full depth — useful on multi-lane highway overlay programs where daily production per machine drives fleet economics.
CIF shipping available. Genuine XCMG parts and service through me-equipment.com.
Five aspects of the XM1305F that fit it to 1.3-meter front-conveying medium milling work: wider rotor envelope, Stage 4a engine, intelligent control suite, sibling positioning, and parts compatibility.
1,300 mm milling width, 300 mm maximum milling depth, 106-cutter rotor. 8.3 percent wider cut than the sibling XM1205F (1,200 mm) and 30 percent wider than the XM1005 1.0 m class — fewer passes per lane width on standard highway lanes, higher daily production output on multi-lane overlay programs.
Powered by a Shangchai 206 kW diesel engine certified to EU Stage 4a and China Stage III. 7.3 percent more power than the sibling XM1205F (192 kW) — supports sustained advance rate at full 300 mm depth across the wider 1.3 m cut. Same EU Stage 4a / CN III emission profile as the XM1205F.
Specified with intelligent control, load limiting, water sprinkling intelligent control, engine high-temperature protection, and construction data management. Same control suite as the sibling XM1205F. Load limiter protects rotor drive; water sprinkling automation reduces operator workload; data management captures construction records for project documentation.
22,000 kg operating weight, 20,500 kg transport weight. 2 percent heavier than the sibling XM1205F (21,500 kg) at the same 300 mm depth. Pick XM1305F when the wider 1.3 m cut delivers daily output gain that pays back the marginally higher chassis cost — typical on multi-lane highway and airport overlay programs.
Cutters, hold-downs, conveyor parts, and electrical components share core part numbers with other XCMG milling machines in the XM10xx / XM12xx / XM13xx / XM15xx / XM20xx / XM5xx lineup. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Engine | - | Shangchai |
| Rated Power | kW | 206 |
| Emission | - | EU Stage 4a / CN Stage III |
| Weight in transportation state | kg | 20500 |
| Weight in work state | kg | 22000 |
| Milling width | mm | 1300 |
| Max. milling depth | mm | 300 |
| Number of cutters | - | 106 |
| Transport dimensions (L×W×H) | mm | 9950×2280×3000 |
