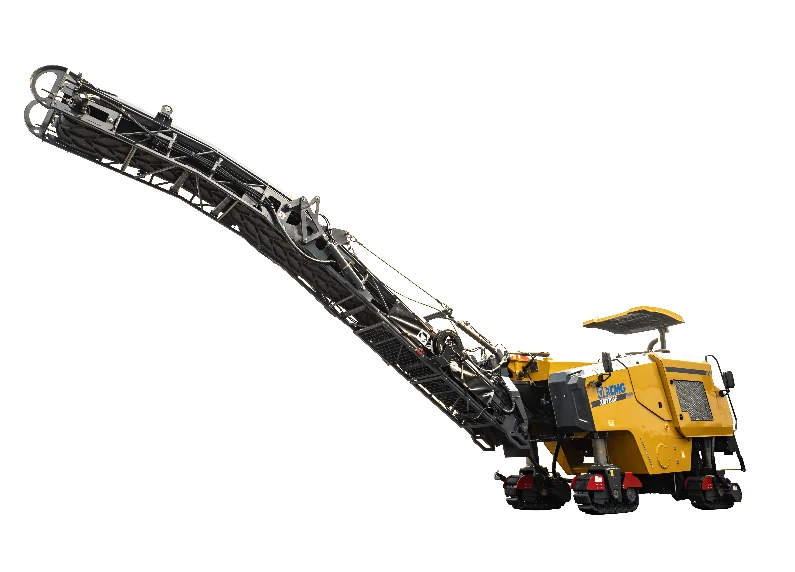

XCMG XM1205F Medium Milling Machine

1,200 mm standard milling width, 300 mm maximum milling depth, 100-cutter rotor. 20 percent wider cut than the XM10xx 1.0 m class siblings — fewer passes per lane width on standard highway lanes (typically 3.0-3.75 m), measurable daily output gain on production overlay programs. Same 300 mm max depth as the XM1005F and XM1005K.

Powered by a Shangchai 192 kW diesel engine certified to EU Stage 4a and China Stage III. Stage 4a emission profile is a tighter standard than Stage 3a on the XM1005F — pick XM1205F when project work imports into jurisdictions enforcing Stage 4 emission compliance.

Specified with intelligent control, load limiting, water sprinkling intelligent control, engine high-temperature protection, and construction data management. Load limiter protects the rotor drive from cutter overload; water sprinkling automation reduces operator workload and dust control variance; data management captures construction records for project documentation.

21,500 kg operating weight, 20,000 kg transport weight. 32 percent heavier than the XM1005F (16,300 kg) — XM1205F's heavier chassis and 1.2 m rotor put it in the next transport class, so factor higher low-bed permit cost against the daily production gain when sizing the fleet.

Cutters, hold-downs, conveyor parts, and electrical components share core part numbers with other XCMG milling machines in the XM10xx / XM12xx / XM13xx / XM15xx / XM20xx / XM5xx lineup. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
