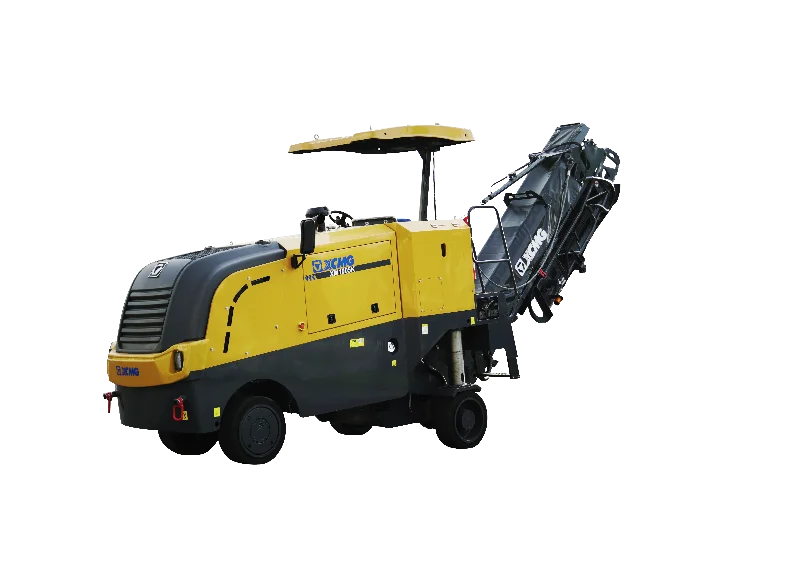

Medium Milling Machine — 1.0 m Width, 300 mm Depth, Shangchai 177 kW
1-meter medium milling machine for asphalt pavement excavation and renovation. 1,000 mm milling width, 300 mm maximum milling depth, 80-cutter rotor. Shangchai 177 kW diesel engine certified to EC Stage IIIA and China Stage III. 14,700 kg operating weight, 14,000 kg transport weight — mid-weight in the XCMG 1.0 m class. Transport dimensions 9,575 × 2,295 × 2,690 mm. Pick XM1005K when project work needs the deeper 300 mm cut but the 16.3 t XM1005F operating weight is too heavy for the job site.
The XCMG XM1005K is a 1-meter medium milling machine for asphalt concrete pavement excavation and renovation on highways, urban roads, airports, freight yards, and parking lots. It removes road congestion, wave patterns, mesh cracks, and ruts; excavates pavement pits and trenches; roughens cement pavement; and mills surface faulting.
Powered by a Shangchai 177 kW diesel engine certified to EC Stage IIIA and China Stage III. Milling width 1,000 mm, maximum milling depth 300 mm, 80-cutter rotor. Operating weight 14,700 kg, transport weight 14,000 kg. Transport dimensions 9,575 × 2,295 × 2,690 mm.
Within the XCMG 1.0 m class, the XM1005K sits between the lighter XM1005H (Cummins 164 kW, 220 mm depth, 13.5 t) and the higher-power XM1005F (Shangchai 191.5 kW, 300 mm depth, 16.3 t). Pick XM1005K when project work needs the deeper 300 mm cut envelope but doesn't justify the 16.3 t XM1005F weight class, and EC Stage IIIA emission compliance fits the regulatory environment.
CIF shipping available. Genuine XCMG parts and service through me-equipment.com.
Five aspects of the XM1005K that fit it to mid-weight 1.0-meter medium milling work: rotor configuration, Shangchai engine, EC IIIA emission profile, sibling positioning, and parts compatibility.
1,000 mm milling width, 300 mm maximum milling depth, 80-cutter rotor. Matches the XM1005F on cut envelope (1,000 × 300 mm) but uses 80 cutters vs 91 — fewer bits to replace per change-out cycle on the same advance length. Deeper cut than the sibling XM1005H (220 mm).
Powered by a Shangchai 177 kW diesel engine certified to EC Stage IIIA and China Stage III. 7.9 percent more power than the Cummins-powered XM1005H (164 kW) and 7.6 percent less than the XM1005F (191.5 kW). Distinct emission profile from the XM1005F (EU Stage 3a/CN III) — choose based on the importing jurisdiction's certification list.
14,700 kg operating weight and 14,000 kg transport weight. Sits between the XM1005H (13,500 kg) and XM1005F (16,300 kg) in the XCMG 1.0 m class — pick XM1005K when project work needs the deeper 300 mm cut but the 16.3 t XM1005F class would push the low-bed transport into a higher permit category.
Specified for asphalt concrete pavement excavation and renovation on highways, urban roads, airports, freight yards, and parking lots. Removes road congestion, wave patterns, mesh cracks, and ruts; excavates pavement pits and trenches; roughens cement pavement; mills surface faulting.
Cutters, hold-downs, conveyor parts, and electrical components share core part numbers with other XCMG milling machines in the XM10xx / XM12xx / XM13xx / XM15xx / XM20xx / XM5xx lineup. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Engine | - | Shangchai |
| Rated Power | kW | 177 |
| Emission | - | EC Stage IIIA / CN Stage III |
| Weight in transportation state | kg | 14000 |
| Weight in work state | kg | 14700 |
| Milling width | mm | 1000 |
| Max. milling depth | mm | 300 |
| Number of cutters | - | 80 |
| Transport dimensions (L×W×H) | mm | 9575×2295×2690 |
