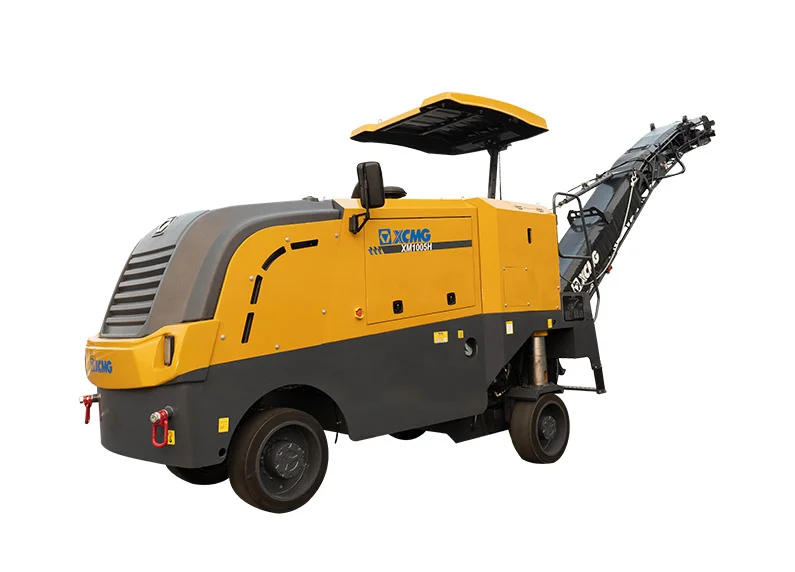

XCMG XM1005H Medium Milling Machine

1,000 mm standard milling width with 220 mm maximum milling depth and an 80-cutter rotor. Surface-only depth envelope — distinct from the deeper 300 mm cut on the sibling XM1005F and XM1005K. Pick XM1005H when project scope is asphalt overlay removal and surface renovation rather than deeper structural milling.

Powered by a Cummins 164 kW diesel engine certified to EU Stage III. Cummins maintains a worldwide parts and service network with broad reach across mainland China, Southeast Asia, Africa, Middle East, and the Americas — fleets that already stock Cummins parts share that pool with the XM1005H.

13,500 kg operating weight and 12,800 kg transport weight — 17 percent lighter than the XM1005F (16,300 kg) and 8 percent lighter than the XM1005K (14,700 kg). Lower low-bed transport class and reduced per-trip permit overhead for fleet operators moving between municipal job sites on a daily cycle.

Specified for asphalt concrete pavement excavation and renovation on highways, urban roads, airports, freight yards, and parking lots. Removes road congestion, wave patterns, mesh cracks, and ruts; excavates pavement pits and trenches; roughens cement pavement; mills surface faulting.

Cutters, hold-downs, conveyor parts, and electrical components share core part numbers with other XCMG milling machines in the XM10xx / XM12xx / XM13xx / XM15xx / XM20xx / XM5xx lineup — lower inventory carrying cost for mixed-width XCMG rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
