Front-conveying medium milling machine with 1,000 mm milling width and 300 mm maximum cutting depth. 91-cutter rotor. Shangchai 191.5 kW diesel engine certified to EU Stage 3a / China Stage III. 16,300 kg operating weight, 15,500 kg transport weight. Transport dimensions 9,480 × 2,310 × 2,800 mm. Specified for asphalt concrete pavement excavation and renovation on highways, urban roads, airports, freight yards, and parking lots — removing congestion bumps, ruts, wave patterns; trench excavation; cement pavement roughening.

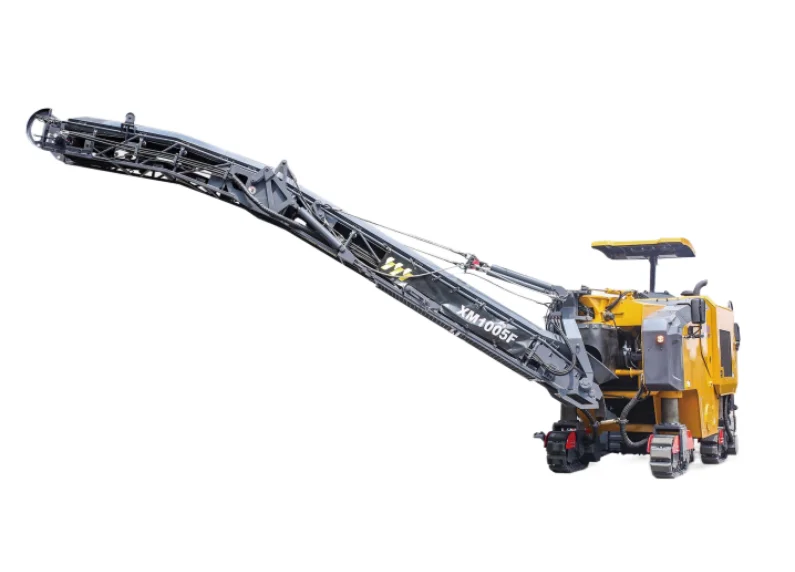

The XCMG XM1005F is a front-conveying medium milling machine with a 1,000 mm milling width and 300 mm maximum cutting depth. The 91-cutter rotor handles asphalt concrete pavement removal on highways, urban roads, airports, freight yards, and parking lots — congestion bumps, wave patterns, mesh cracks, and ruts; trench and pit excavation; cement pavement roughening; and surface faulting correction.
Powered by a Shangchai 191.5 kW diesel engine certified to EU Stage 3a and China Stage III. Operating weight 16,300 kg, transport weight 15,500 kg. Transport dimensions 9,480 × 2,310 × 2,800 mm.
The XM1005F sits in the medium class alongside the Cummins-powered XM1005H (164 kW, 220 mm max depth, 80 cutters) and the Shangchai-powered XM1005K (177 kW, EC IIIA emission). Pick XM1005F when the project needs the deeper 300 mm cut and higher 191.5 kW engine output for production milling on asphalt overlay programs, and Stage 3a emission compliance fits the regulatory environment.
CIF shipping is available. Genuine XCMG parts and service through me-equipment.com's authorized dealer channel.
