94 ft 6 in (≈28.8 m) working height engine-powered telescopic boom lift, ANSI A92.20 certified. 87 ft 11 in max platform height, 72 ft 2 in (≈22 m) max horizontal working range, 661 lbs unrestricted / 1,014 lbs restricted platform capacity. Boom luffing -4° to +73°, 360° turntable rotation. 35,053 lbs total weight, 9 ft 10 in wheelbase, 3.7 mph max travel speed, 45% max gradeability. Lighter-weight sibling of XGS85J-ANSI (40,344 lbs) — pick when weight reduction matters more than 1.7 ft of working height.

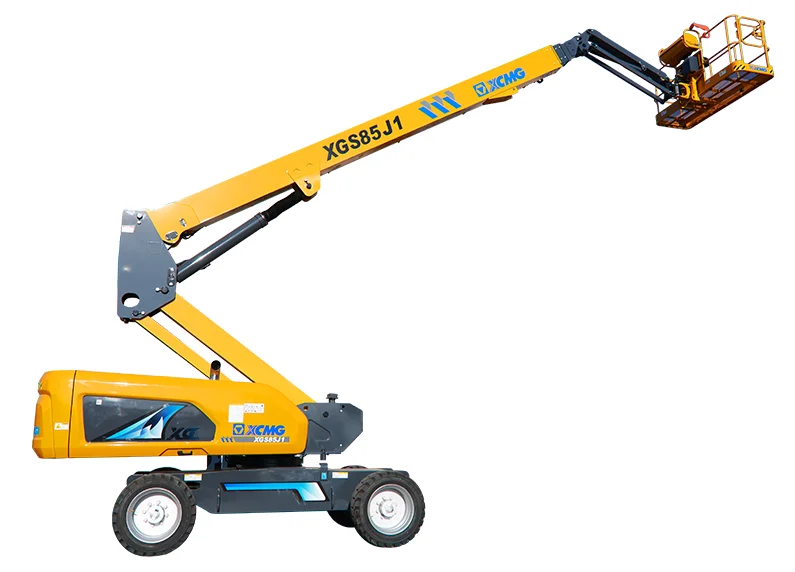

The XCMG XGS85J1-ANSI is a 94 ft 6 in (≈28.8 m) working height engine-powered telescopic boom lift, ANSI-certified for the US and other ANSI-A92-following markets. The XGS85J1 variant is the lighter-weight sibling of the XGS85J-ANSI (35,053 lbs vs 40,344 lbs) — pick when weight reduction matters more than the 1 ft 8 in working height delta.
Max platform height 87 ft 11 in, max horizontal working range 72 ft 2 in (≈22 m), 661 lbs unrestricted / 1,014 lbs restricted platform capacity. Boom luffing range -4° to +73°. 360° continuous turntable rotation. 3.7 mph max travel speed (35 percent faster than the 158J-ANSI at 2.8 mph), 45% max gradeability, 9 ft 10 in wheelbase. 35,053 lbs total weight. ANSI A92.20 certification. Sits in the lower-mid range of the XCMG ANSI telescopic boom lift lineup — pick over the metric XGS28K when ANSI compliance is required for the US/Canada market or other ANSI-following jurisdictions.
