92 ft 6 in (≈28.2 m) working height engine-powered telescopic boom lift, ANSI A92.20 certified. 85 ft 11 in max platform height, 75 ft 6 in (≈23 m) max horizontal working range, 661 lbs unrestricted / 1,014 lbs restricted platform capacity. Boom luffing -5° to +75°, 360° turntable rotation. 40,344 lbs total weight, 9 ft 10 in wheelbase, 3.8 mph max travel speed, 40% max gradeability. Heavier-frame variant of XGS85J1-ANSI — pick when 3.3 ft of additional horizontal reach justifies 5,291 lbs more weight.

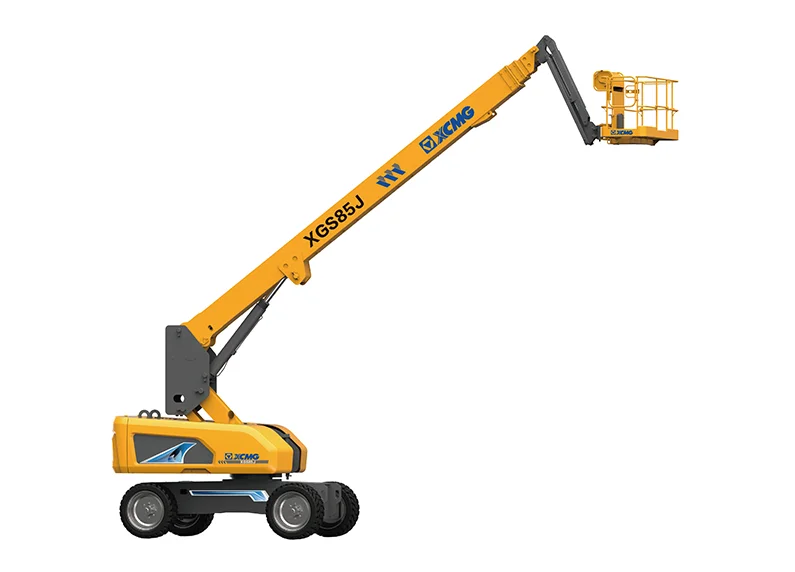

The XCMG XGS85J-ANSI is a 92 ft 6 in (≈28.2 m) working height engine-powered telescopic boom lift, ANSI-certified for the US and other ANSI-A92-following markets. Heavier-frame variant in the 85J class — sibling to the lighter XGS85J1-ANSI (35,053 lbs). Pick the XGS85J-ANSI when 75.5 ft of horizontal reach justifies the 5,291 lbs additional weight vs the J1 variant's 72.2 ft.
Max platform height 85 ft 11 in, max horizontal working range 75 ft 6 in (≈23 m), 661 lbs unrestricted / 1,014 lbs restricted platform capacity. Boom luffing range -5° to +75°. 360° continuous turntable rotation. 3.8 mph max travel speed, 40% max gradeability, 9 ft 10 in wheelbase (same as J1). 40,344 lbs total weight. ANSI A92.20 certification. Sits in the lower-mid range of the XCMG ANSI telescopic boom lift lineup between the 65J-ANSI (72 ft) and 125J-ANSI (131 ft). Suited for facade and industrial maintenance work where ANSI compliance is binding and horizontal reach matters.
