72 ft 2 in (≈22 m) working height engine-powered telescopic boom lift, ANSI A92.20 certified. 65 ft 7 in max platform height, 56 ft 5 in (≈17.2 m) max horizontal working range, 661 lbs unrestricted / 1,014 lbs restricted platform capacity. Boom luffing -3° to +73°, 360° turntable rotation. 27,470 lbs total weight, 8 ft 2 in wheelbase, 3.9 mph max travel speed, 45% max gradeability. Lower-mid ANSI variant — light enough for single-truck transport without specialty trailer.

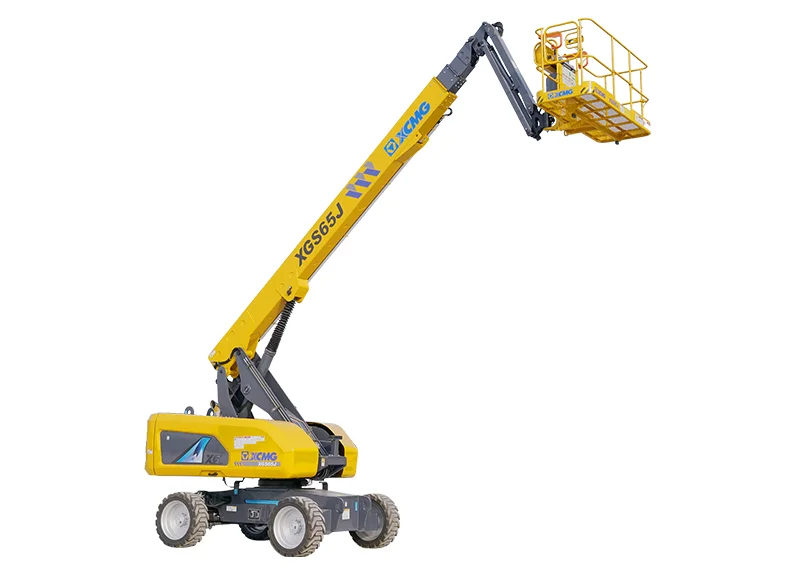

The XCMG XGS65J-ANSI is a 72 ft 2 in (≈22 m) working height engine-powered telescopic boom lift, ANSI-certified for the US and other ANSI-A92-following markets. Lower-mid of the XCMG ANSI telescopic boom lift lineup — sits between the 46J-ANSI (52 ft) and 85J-ANSI (92 ft) ANSI siblings.
Max platform height 65 ft 7 in, max horizontal working range 56 ft 5 in (≈17.2 m), 661 lbs unrestricted / 1,014 lbs restricted platform capacity. Boom luffing range -3° to +73°. 360° continuous turntable rotation. 3.9 mph max travel speed (fastest in the J-series after the 46J), 45% max gradeability, 8 ft 2 in wheelbase. 27,470 lbs total weight (≈12.5 t). ANSI A92.20 certification. Lighter weight enables single-truck transport without specialty trailer for rental fleet operators moving units between sites. Pick over the metric XGS22K when ANSI compliance is binding for the US/Canada market or other ANSI-following jurisdictions.
