52 ft 6 in (≈16 m) working height engine-powered telescopic boom lift, ANSI A92.20 certified. 46 ft max platform height, 41 ft 8 in (≈12.7 m) max horizontal working range, 529 lbs unrestricted / 705 lbs restricted platform capacity. Boom luffing -14° to +73° — widest negative range in the XGS ANSI J-series. 360° turntable rotation. 17,747 lbs (≈8 t) total weight, 7 ft 9 in wheelbase, 3.73 mph max travel speed, 45% max gradeability. Smallest XCMG ANSI telescopic boom lift — pickup-truck-towable trailer transport.

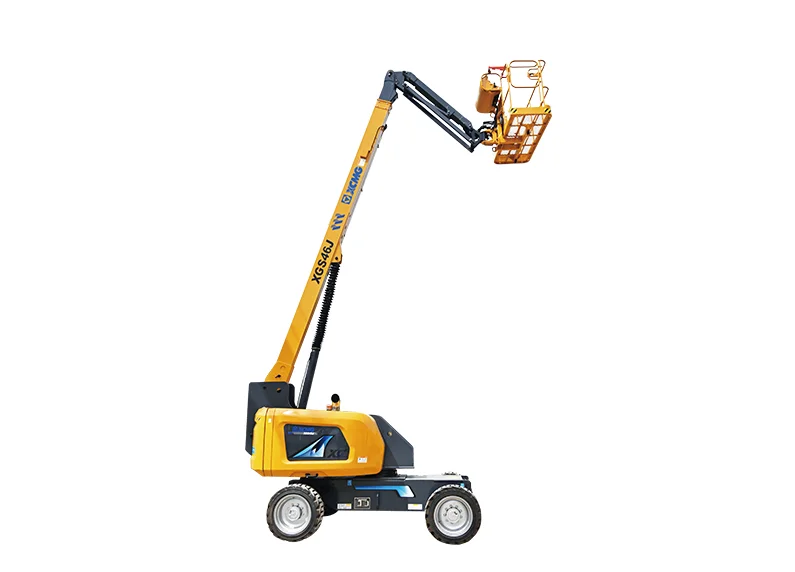

The XCMG XGS46J-ANSI is a 52 ft 6 in (≈16 m) working height engine-powered telescopic boom lift, ANSI-certified for the US and other ANSI-A92-following markets. Smallest telescopic boom lift in the XCMG ANSI lineup — sized for facade work, low-bay industrial maintenance, and rental fleet operations where ANSI compliance is required but the project doesn't need 65+ ft of reach.
Max platform height 46 ft, max horizontal working range 41 ft 8 in (≈12.7 m), 529 lbs unrestricted / 705 lbs restricted platform capacity — lower than the 65J/85J/125J/158J/220J siblings' 661/1014 lbs reflecting the smaller frame. Boom luffing range -14° to +73° — widest negative range in the J-series for below-grade reach. 360° continuous turntable rotation. 3.73 mph max travel speed, 45% max gradeability, 7 ft 9 in wheelbase. 17,747 lbs (≈8 t) total weight — fits standard pickup-truck-towable trailer for rental fleet operations. ANSI A92.20 certification.
