45.1 m working height engine-powered telescopic boom lift. 43.1 m max platform height, 25.2 m max horizontal working range — same horizontal reach as the taller 50 m XGS50K. 300 kg unlimited / 460 kg limited platform capacity, three occupants. Telescopic boom -1° to +75°, flying jib (2,440 mm) -60° to +70°. 22.2 t dead weight, 15.42 m stowed length, axle-extending chassis (2,490 / 4,400 mm width). 40% (21°) gradeability, 400 mm ground clearance.

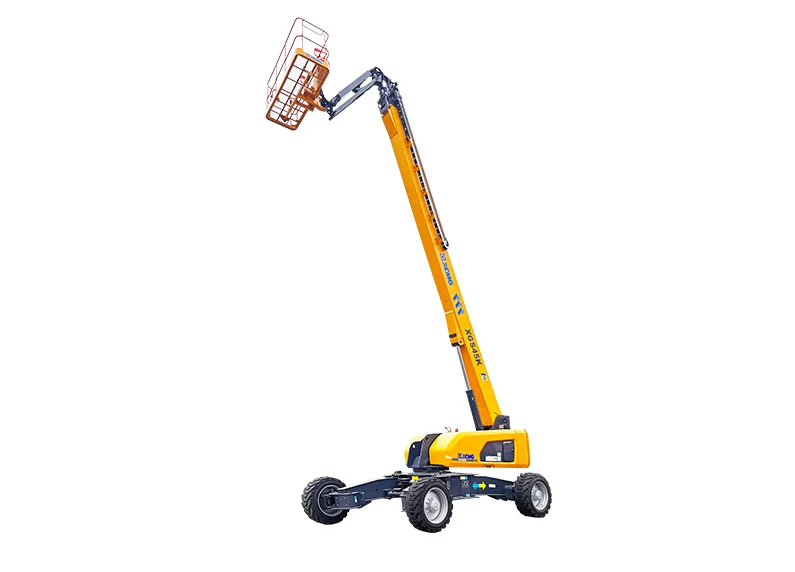

The XCMG XGS45K is a 45.1 m working height engine-powered telescopic boom lift built for high-reach exterior facade work, steel structure construction, port maintenance, and shipyard hull work in the 45 m class.
Max platform height 43.1 m, max horizontal working range 25.2 m (same horizontal reach as the taller 50 m XGS50K), 300 kg unlimited / 460 kg limited platform capacity, three occupants. Telescopic boom luffs -1° to +75°, flying jib (2,440 mm) luffs -60° to +70°. 360° continuous turntable rotation, ±160° platform rotation. 22.2 t dead weight, 15.42 m stowed length / 12.53 m transport length, 2,490 mm width retracted (4,400 mm with axles extended for working footprint stability). Drive speed 5 km/h stowed, 0.5 km/h boom up or extended. 40% (21°) max gradeability, 400 mm ground clearance. Sits below the 50 m XGS50K and above the 43.3 m XGS43 — pick the 45 m class for projects needing extra reach beyond the 43 m fixed-axle variant.
