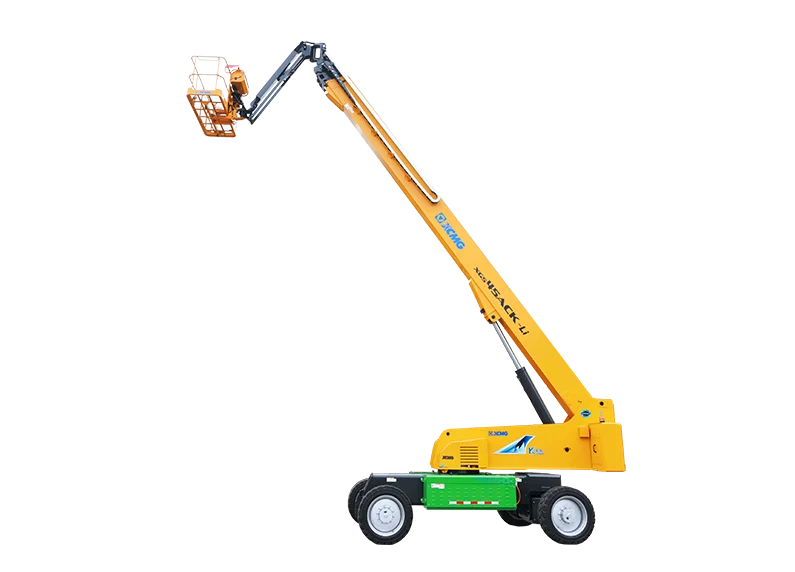

XCMG XGS45ACK-Li Electric Telescopic Boom Lift

43.1 m maximum platform height, 45.1 m maximum working height, 22.1 m maximum working range. Telescopic boom luffing range -1 to +75 degrees plus 2.44 m flying jib (-60 to +70 degrees). 360-degree turntable rotation, 160-degree platform rotation. Tallest-class envelope in the XGS-ACK fleet — sized for high-rise facade work, energy-sector tower service, wind power site work, and large industrial roof structures beyond the 40 m XGS40ACK-Li envelope.

230 kg unlimited across the full envelope at maximum reach, 300 kg limited within the mid-reach zone, 460 kg limited within the innermost zone. Three tiers give operators rated capacity options matched to the working radius — two operators on full reach, full crew plus tools on inner reach. Capacity envelope is segmented more granularly than the dual-tier 30-40 m siblings to keep ratings honest at the longer boom envelope.

2.44 m flying jib length — 32 percent longer than the 1.85 m jib on the 22-34 m XGS-ACK siblings and 72 percent longer than the 1.42 m jib on the XGS18ACK and XGS40ACK-Li. Provides additional offset reach beyond the telescopic boom envelope, useful for clearing parapets, perimeter obstructions, and tower-side equipment access at maximum height.

3800 mm wheelbase with extendable axles — chassis transports at 2490 mm width, axles extend to 3800 mm working width for outrigger-equivalent stability at maximum boom reach. Larger stability footprint supports the longest boom envelope in the XGS-ACK fleet at full extension. 20.5 ton unit weight.

Boom sections, platform components, hydraulic valves, and electrical control elements share core part numbers across the XGS-ACK lineup (XGS18ACK through XGS45ACK-Li). Lower inventory carrying cost for rental fleet operators running mixed-height XCMG rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
