34.3 m working height engine-powered telescopic boom lift. 32.3 m max platform height, 34.7 m max horizontal working range — horizontal reach exceeds vertical reach. 300 kg unlimited / 460 kg limited platform capacity, three occupants. Telescopic boom -6° to +75°, flying jib (1,420 mm) -60° to +70°. 19.3 t dead weight, 14.4 m stowed length, 3,800 mm wheelbase. 45% (24°) gradeability, 300 mm ground clearance. Reach-oriented K-series variant — pick over the XGS34K(II) when 14 m more horizontal reach justifies 600 kg more weight.

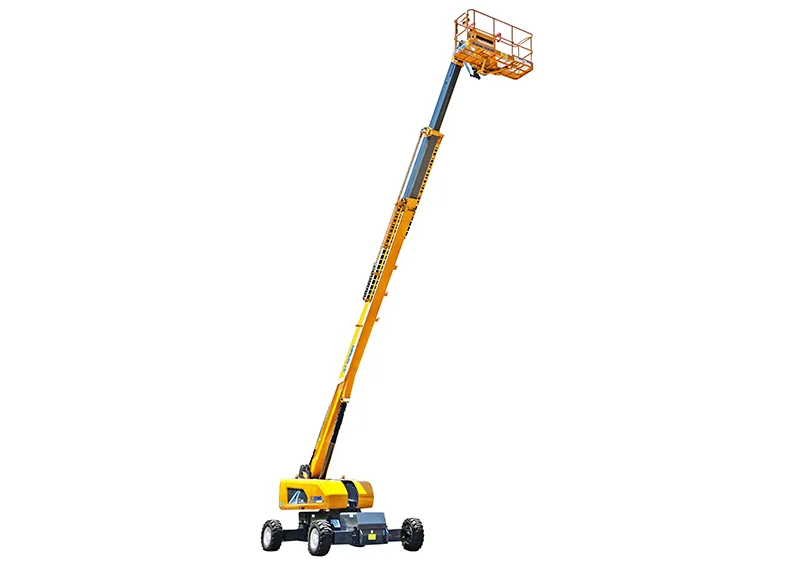

The XCMG XGS34K is a 34.3 m working height engine-powered telescopic boom lift built for exterior facade work, steel structure construction, port maintenance, and shipyard hull work in the 34 m class. Mid-range K-series unit with the longest horizontal reach in its class — 34.7 m horizontal working range exceeds the 34.3 m max platform height.
Max platform height 32.3 m, max horizontal working range 34.7 m, 300 kg unlimited / 460 kg limited platform capacity, three occupants. Telescopic boom luffs -6° to +75°, flying jib (1,420 mm) luffs -60° to +70°. 360° continuous turntable rotation, ±160° platform rotation. 19.3 t dead weight, 14.4 m stowed length / 12.8 m transport length, 2,490 mm width retracted (3,800 mm extended). Drive speed 5 km/h stowed, 0.5 km/h boom up or extended. 45% (24°) max gradeability (better than the 40-43 m K-series at 40%), 300 mm ground clearance. Min turning radius 7,700 / 10,800 mm (2-wheel), 4,400 / 6,800 mm (4-wheel). 3,800 mm wheelbase shared with the XGS40K and XGS43 — chassis parts compatibility.
