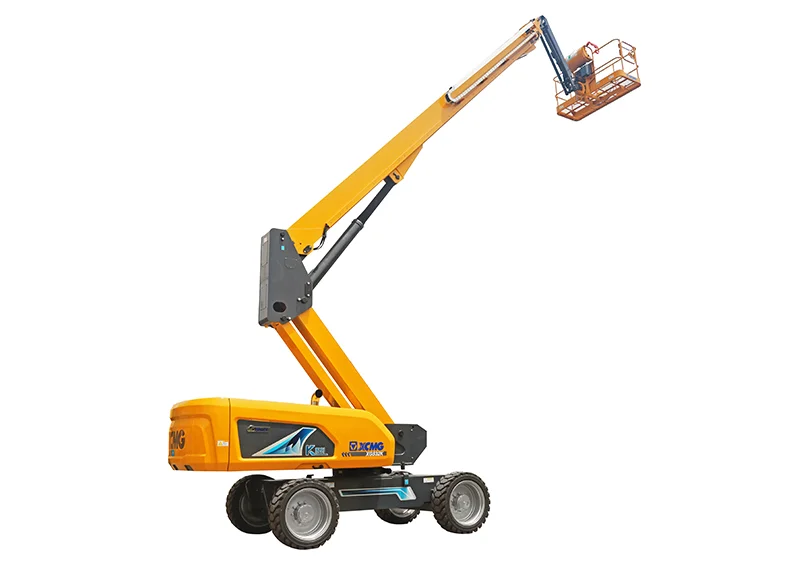

XCMG XGS32K Telescopic Boom Lift

32.6 m max working height, 30.6 m max platform height, 20 m max horizontal working range. Telescopic boom luffing -4° to +73°. Flying jib 1,850 mm, luffing -65° to +70°. Sized for projects between the 28 m XGS28K and 34.5 m XGS34K(II) — pick when 30 m platform height fits the building envelope but 34 m would over-spec.

300 kg unlimited platform capacity for full reach envelope operation, 460 kg limited capacity mode for heavier crew + tooling. Three-occupant platform (2,440 × 910 × 1,150 mm — slightly wider than 2,400 mm XGS34K platform). ±160° platform rotation, 360° continuous turntable rotation. Working slope tolerance X-5° / Y-5°.

4,400 mm inside / 6,250 mm outside turning radius — significantly tighter than the 34.7 m reach XGS34K's 7,700 mm (2-wheel) radius. 3,000 mm wheelbase. Suits indoor steel structure work, congested industrial sites, and rental fleet operations where return-to-trailer maneuvering matters.

5.5 km/h max drive speed stowed (10 percent faster than the larger 3.8 m wheelbase K-series at 5.0 km/h); 0.6 km/h crawl speed when boom is up or extended. 45% (24°) max gradeability, 400 mm ground clearance — same gradeability as the XGS34K and 33 percent more clearance than the XGS34K (300 mm).

3,000 mm wheelbase shared with XGS25K (25 m), XGS28K (28 m), and XGS30K (30 m) — chassis-side parts compatibility across the compact K-series. 13,100 × 2,490 × 2,980 mm transport configuration. 18,500 kg dead weight. Lower inventory carrying cost for rental fleet operators running multiple compact-K telescopic boom lift units.
