Lithium-battery electric self-propelled telescopic boom lift, 32.6 m maximum working height and 30.6 m platform height. 20 m maximum horizontal working range. Dual-tier 300 kg unlimited / 460 kg limited lift capacity. 3-person 2400 x 900 x 1150 mm platform. 17.9 ton unit weight on 3200 mm wheelbase. 6 km/h stowed drive, 45 percent gradeability. Lithium-ion battery pack — longer cycle life and faster charging versus lead-acid. Non-marking off-road tires and axle balancing as standard for outdoor and indoor finished-interior work.

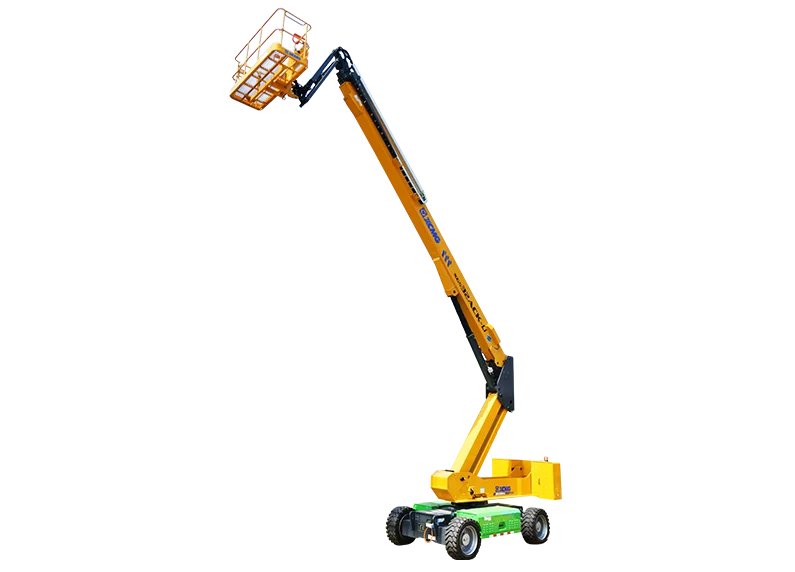

The XCMG XGS32ACK-Li is a lithium-battery electric self-propelled telescopic boom lift in the 32-meter working height class. Maximum platform height is 30.6 m, working height 32.6 m, horizontal working range 20 m. Dual-tier capacity: 300 kg unlimited across the full envelope, 460 kg limited inner zone for crew plus tools.
Unit weight is 17.9 tons; stowed and transport dimensions match at 12980 x 2490 x 2950 mm. The 2400 x 900 x 1150 mm platform fits up to 3 occupants. Drive speed 6 km/h stowed and 0.6 km/h elevated. Gradeability 45 percent (24 degrees), 320 mm ground clearance, 3200 mm wheelbase. Turning radius 4600 mm inside / 6500 mm outside. Telescopic boom luffing range -4 to +73 degrees, 1.85 m flying jib (-65 to +70 degrees). 360-degree turntable, 160-degree platform rotation.
Lithium-ion battery delivers longer cycle life and faster charging versus lead-acid. Non-marking off-road tires with axle balancing as standard — drives outdoor sites and operates inside finished interiors with zero emission and low noise.
