30.3 m working height engine-powered telescopic boom lift. 28.3 m max platform height, 21 m max horizontal working range, 300 kg unlimited / 460 kg limited platform capacity, three occupants. Telescopic boom -4° to +73°, flying jib (1,850 mm) -65° to +70°. 16.7 t dead weight — lightest in the 30 m class, 12.5 m stowed length, 3,000 mm wheelbase. 45% (24°) gradeability, 365 mm ground clearance. Compact-K series with shared 3 m wheelbase platform across XGS25K/XGS28K/XGS32K.

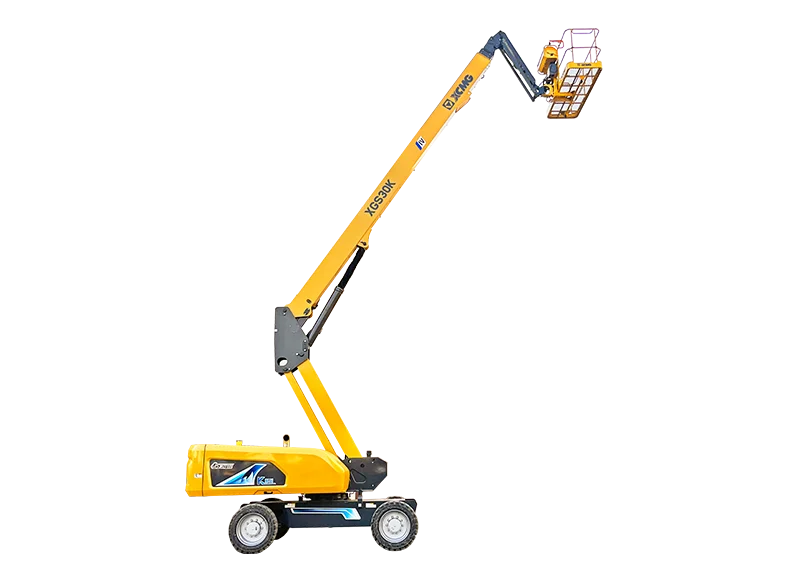

The XCMG XGS30K is a 30.3 m working height engine-powered telescopic boom lift built for exterior facade work, factory installation, and rental fleet operations in the 30 m class. Compact-K series unit with 3,000 mm wheelbase shared across the XGS25K/XGS28K/XGS32K/XGS34K(II) platform.
Max platform height 28.3 m, max horizontal working range 21 m, 300 kg unlimited / 460 kg limited platform capacity, three occupants. Telescopic boom luffs -4° to +73°, flying jib (1,850 mm) luffs -65° to +70°. 360° continuous turntable rotation, ±160° platform rotation. 16.7 t dead weight (the lightest in the 30 m class), 12.5 m stowed length / 11 m transport length, 2,490 mm width. Drive speed 5.5 km/h stowed, 0.6 km/h boom up or extended. 45% (24°) max gradeability, 365 mm ground clearance. 6.25 m turning radius. 2,490 × 900 × 1,150 mm working platform. Sits between XGS28K (28.2 m) and XGS32K (32.6 m) in the compact-K lineup.
