Lithium-battery electric self-propelled telescopic boom lift, 30.3 m maximum working height and 28.3 m platform height. 21 m maximum horizontal working range. Dual-tier 300 kg unlimited / 460 kg limited lift capacity — the 460 kg inner-zone tier carries a 3-person crew plus tools. 16.7 ton unit weight on 3200 mm wheelbase. 6 km/h stowed drive, 45 percent gradeability, 365 mm ground clearance. Non-marking off-road tires and axle balancing as standard. Lithium-ion battery — longer cycle life and faster charging versus lead-acid.

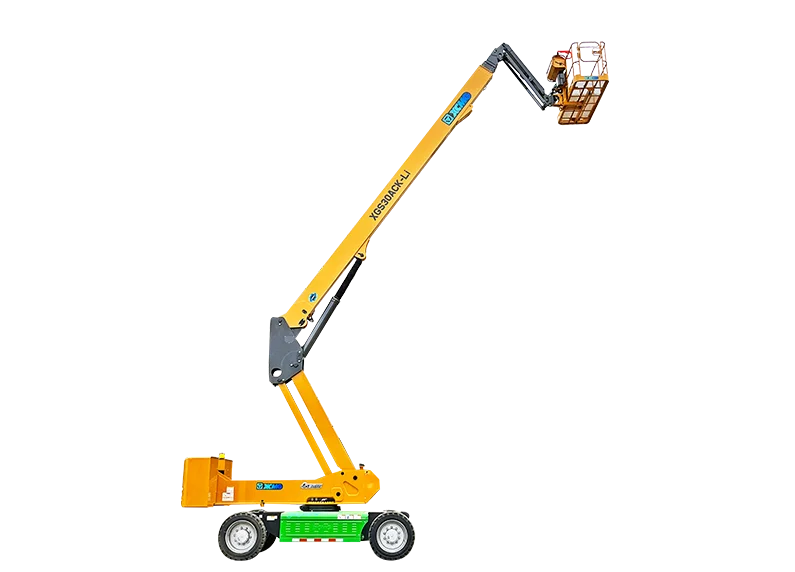

The XCMG XGS30ACK-Li is a lithium-battery electric self-propelled telescopic boom lift in the 30-meter working height class. Maximum platform height is 28.3 m, working height 30.3 m, horizontal working range 21 m. Dual-tier capacity: 300 kg unlimited across the envelope, 460 kg limited inner zone — carries a 3-person crew plus tools when inside the inner reach.
Unit weight is 16.7 tons; stowed dimensions 12500 x 2490 x 2820 mm, transport 11000 x 2490 x 3100 mm. The 2400 x 900 x 1150 mm platform. Drive speed 6 km/h stowed and 0.6 km/h elevated. Gradeability 45 percent (24 degrees), 365 mm ground clearance, 3200 mm wheelbase. Telescopic boom luffing range -4 to +73 degrees, with a 1.85 m flying jib. 360-degree turntable, 160-degree platform rotation.
Lithium-ion battery powerpack delivers longer cycle life and faster charging compared with lead-acid alternatives. Standard fit of non-marking off-road tires plus axle balancing system — same machine drives outdoor sites and operates inside finished interiors with zero emission and low noise.
