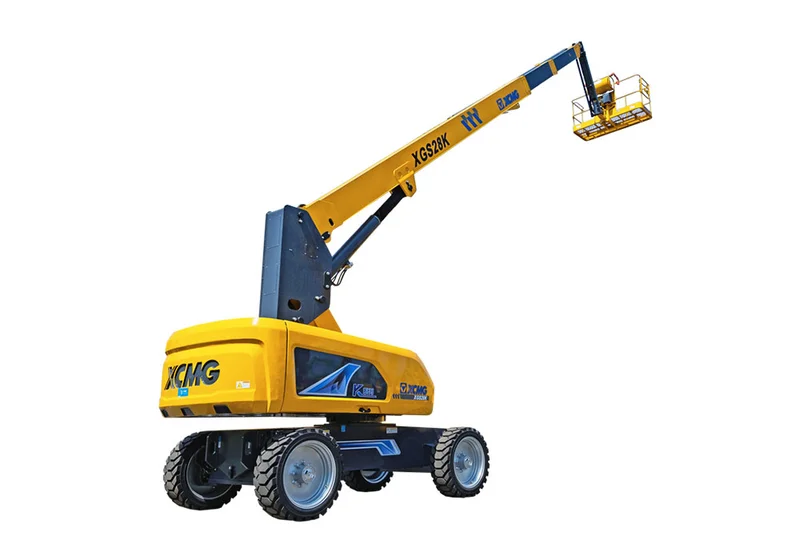

XCMG XGS28K Telescopic Boom Lift

28.2 m max working height, 26.2 m max platform height, 20.6 m max horizontal working range. Base of two 28 m XGS variants. The updated XGS28K(III) delivers 600 mm more working height (28.8 m), 1.4 m more reach (22 m), and 600 kg less weight (15.9 t vs 16.5 t). Pick the base XGS28K when (III) variant availability, lead time, or pricing makes it the better fit.

300 kg unlimited platform capacity for full reach envelope operation, 460 kg limited capacity mode for heavier crew + tooling. Three-occupant platform (2,440 × 910 × 1,150 mm). ±160° platform rotation, 360° continuous turntable rotation. Working slope tolerance X-3° / Y-3°.

6.1 km/h max drive speed stowed; 1 km/h crawl speed when boom is up or extended — 67 percent faster elevated crawl than the XGS28K(III) variant (0.6 km/h) and most other XGS K-series units. Faster elevated repositioning suits continuous-work patterns where the operator needs to reposition between adjacent workpoints without lowering the boom.

40% (22°) max gradeability — 5 pp lower than the XGS28K(III) (45%). 310 mm ground clearance. Telescopic boom luffing -5° to +73° — wider negative range than the (III) variant's -4°. Min turning radius 3,600 mm inside / 6,700 mm outside.

3,000 mm wheelbase shared with XGS25K (25 m), XGS28K(III) (28.8 m), XGS30K (30 m), XGS32K (32.6 m), and XGS34K(II) (34.5 m) — chassis-side parts compatibility across the compact-K range. 12,300 × 2,490 × 3,050 mm transport configuration. Lower inventory carrying cost for rental fleet operators running multiple compact-K telescopic boom lift units.
