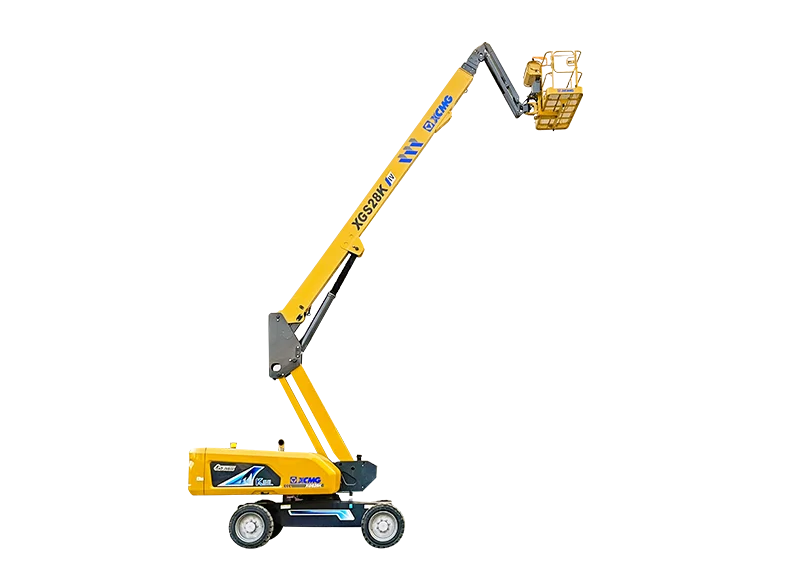

XCMG XGS28K(III) Telescopic Boom Lift

28.8 m max working height (600 mm taller than base XGS28K's 28.2 m), 26.8 m max platform height, 22 m max horizontal working range (1.4 m more than base XGS28K's 20.6 m). 15,900 kg dead weight — 600 kg lighter than base XGS28K (16,500 kg). Pick the (III) variant when the reach and weight upgrades justify the model selection.

3,155 mm inside / 6,360 mm outside turning radius — tightest in the XCMG 28-34 m telescopic boom lift class (vs 4,400 mm on XGS30K/XGS32K/XGS34K(II), 3,600 mm on base XGS28K). 3,000 mm wheelbase. Suits congested industrial sites, indoor steel structure work, and tight rental return-to-trailer maneuvering.

300 kg unlimited platform capacity for full reach envelope operation, 460 kg limited capacity mode for heavier crew + tooling. Three-occupant platform (2,440 × 910 × 1,150 mm). ±160° platform rotation, 360° continuous turntable rotation. Working slope tolerance X-3° / Y-3°.

6 km/h max drive speed stowed — fastest in the XCMG compact-K range (vs 5.5 km/h on XGS30K/XGS32K, 5.1 km/h on XGS25K, 4.5 km/h on XGS34K(II)). 0.6 km/h crawl speed when boom is up or extended. 45% (24°) max gradeability, 320 mm ground clearance. Faster site repositioning suits rental fleet operators rotating units across multiple work zones.

3,000 mm wheelbase shared with XGS25K (25 m), XGS28K (28.2 m), XGS30K (30 m), XGS32K (32.6 m), and XGS34K(II) (34.5 m) — chassis-side parts compatibility across the compact-K range. 11,460 × 2,490 × 3,000 mm transport configuration. Lower inventory carrying cost for rental fleet operators running multiple compact-K telescopic boom lift units.
