Lithium-battery electric self-propelled telescopic boom lift, 28.8 m maximum working height and 26.8 m platform height. 22 m maximum horizontal working range — the same reach as the lighter XGS28ACKII-Li sibling but on a heavier, longer-wheelbase chassis (16.6 vs 12.7 tons). Dual-tier 300 kg unlimited / 460 kg limited lift capacity. 3-person 2440 x 910 x 1150 mm platform. 6 km/h stowed drive, 45 percent gradeability, 3200 mm wheelbase. Lithium-ion battery pack — longer cycle life and faster charging versus lead-acid.

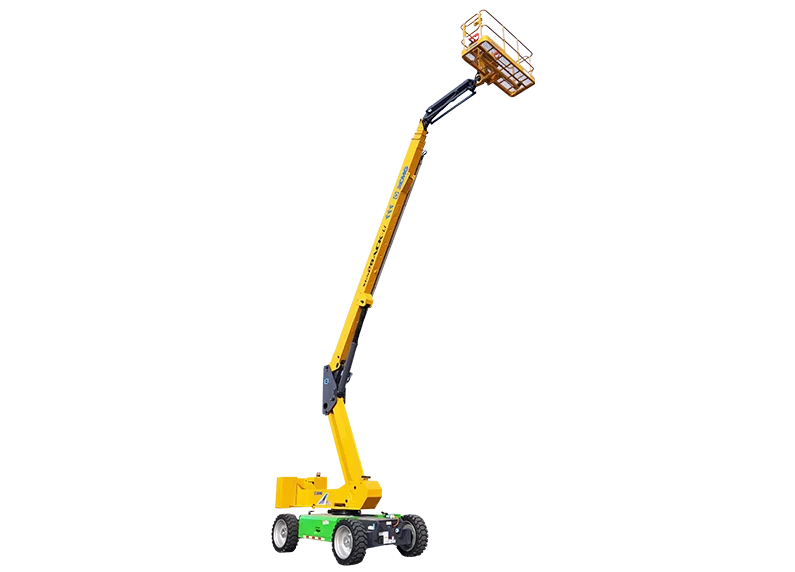

The XCMG XGS28ACK-Li is a lithium-battery electric self-propelled telescopic boom lift in the 28-meter working height class. Maximum platform height is 26.8 m, working height 28.8 m, horizontal working range 22 m — the same 22 m reach as the lighter XGS28ACKII-Li sibling but on a heavier, longer-wheelbase chassis. Dual-tier capacity: 300 kg unlimited across the envelope, 460 kg limited inner zone.
Unit weight is 16.6 tons; stowed dimensions 11690 x 2490 x 2930 mm. The 2440 x 910 x 1150 mm platform fits up to 3 occupants. Drive speed 6 km/h stowed and 0.6 km/h elevated. Gradeability 45 percent (24 degrees), 320 mm ground clearance, 3200 mm wheelbase. Telescopic boom luffing range -4 to +73 degrees, with a 1.85 m flying jib. 360-degree turntable, 160-degree platform rotation.
Choose XGS28ACK-Li when the heavier chassis and longer wheelbase suit the project (more stable platform feel at full reach, outdoor rough-surface work). Choose sibling XGS28ACKII-Li when transit weight matters — 12.7 tons versus 16.6.
