25 m working height engine-powered telescopic boom lift. 23 m max platform height, 17.9 m max horizontal working range, 300 kg unlimited / 460 kg limited platform capacity, three occupants. Telescopic boom -4° to +73°, flying jib (1,850 mm) -65° to +70°. 12.75 t dead weight, 10.24 m stowed length, 3,000 mm wheelbase. 45% (24°) gradeability, 300 mm ground clearance, 3,500 mm inside turning radius. Compact-K series with shared 3 m wheelbase platform across XGS28K/XGS30K/XGS32K/XGS34K(II).

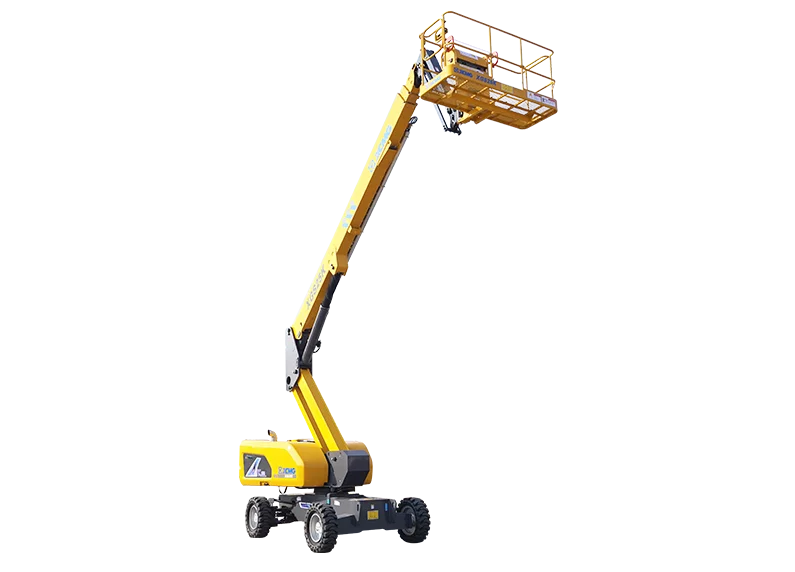

The XCMG XGS25K is a 25 m working height engine-powered telescopic boom lift built for facade work, factory installation, and rental fleet operations in the 25 m class. Compact-K series unit with 3,000 mm wheelbase shared across the XGS28K/XGS30K/XGS32K/XGS34K(II) platform — chassis-side parts compatibility.
Max platform height 23 m, max horizontal working range 17.9 m, 300 kg unlimited / 460 kg limited platform capacity, three occupants. Telescopic boom luffs -4° to +73°, flying jib (1,850 mm) luffs -65° to +70°. 360° continuous turntable rotation, ±160° platform rotation. 12.75 t dead weight, 10.24 m stowed length / 9.48 m transport length, 2,490 mm width. Drive speed 5.1 km/h stowed, 0.6 km/h boom up or extended. 45% (24°) max gradeability, 300 mm ground clearance. Min turning radius 3,500 mm inside / 6,200 mm outside. 2,400 × 900 × 1,150 mm working platform. Suited for small-to-mid facade contractors, indoor industrial maintenance fleets, and rental operations where 25 m fits the project envelope.
