Lithium-battery electric self-propelled telescopic boom lift, 24.5 m maximum working height and 22.5 m platform height. 17.35 m maximum horizontal working range. Dual-tier 300 kg unlimited / 460 kg limited lift capacity — the 460 kg inner-zone rating carries crew plus tools and small fixtures. 3-person platform 2440 x 910 x 1150 mm. 12.96 ton unit weight. 6 km/h stowed drive, 45 percent gradeability. Non-marking off-road tires and axle balancing as standard. Lithium-ion battery pack — longer cycle life and faster charging versus lead-acid.

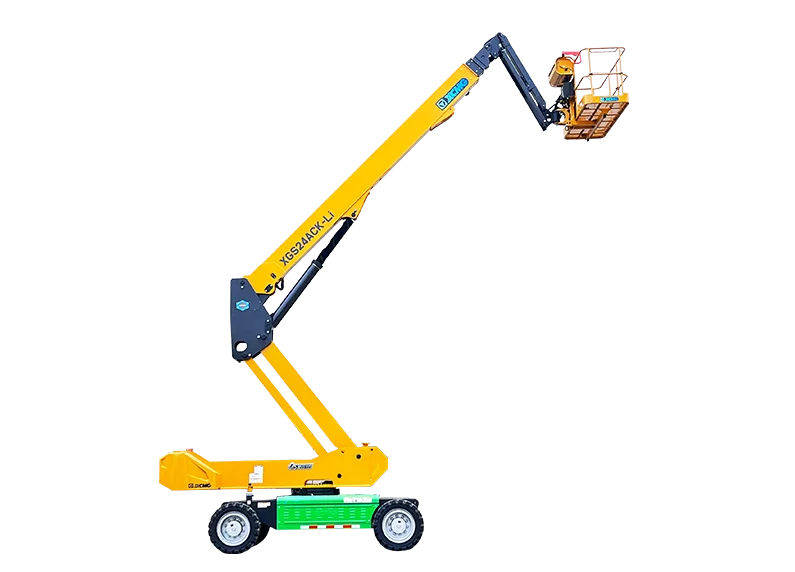

The XCMG XGS24ACK-Li is a lithium-battery electric self-propelled telescopic boom lift in the 24-meter working height class. Maximum platform height is 22.5 m, working height 24.5 m, horizontal working range 17.35 m. Dual-tier lift capacity: 300 kg unlimited across the full envelope; 460 kg limited within the inner reach zone, supporting tools and small fixtures.
Unit weight is 12.96 tons; stowed dimensions 9840 x 2450 x 2830 mm, transport profile 9550 x 2450 x 3000 mm. The 2440 x 910 x 1150 mm platform fits up to 3 occupants. Drive speed 6 km/h stowed and 0.6 km/h elevated. Gradeability 45 percent (24 degrees), 300 mm ground clearance, turning radius 3155 mm inside / 6360 mm outside. Telescopic boom luffing range -4 to +73 degrees, with a 1.85 m flying jib (-65 to +70 degrees). 360-degree turntable, 160-degree platform rotation.
Lithium-ion battery powerpack delivers longer cycle life and faster charging compared with lead-acid alternatives, with no on-shift fluid topping. Zero emission and low noise for indoor finished-interior work.
