22 m Working Height Engine-Powered Self-Propelled Telescopic Boom Lift
22 m working height engine-powered telescopic boom lift. 20 m max platform height, 17.2 m max horizontal working range, 300 kg unlimited / 460 kg limited platform capacity, three occupants. Telescopic boom -3° to +73°, flying jib (1,850 mm) -65° to +70°. 12.46 t dead weight, 10.08 m stowed length, 2,500 mm wheelbase — shorter than the 3 m compact-K standard. 45% (24°) gradeability, 300 mm ground clearance, 3,195 mm inside turning radius. 6.3 km/h drive speed — fastest in small-K range.

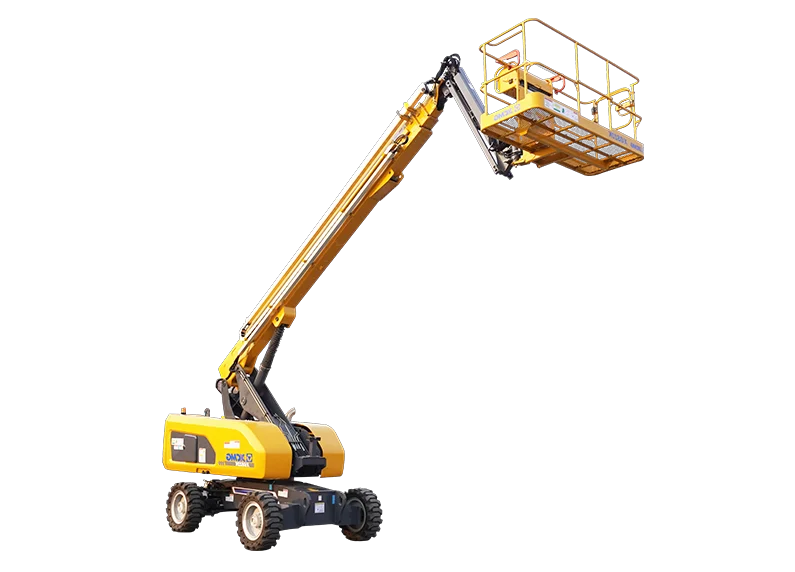

The XCMG XGS22K is a 22 m working height engine-powered telescopic boom lift built for facade work, factory installation, indoor industrial maintenance, and rental fleet operations in the 22 m class. Compact-K series unit with 2,500 mm wheelbase — shorter than the 3,000 mm compact-K platform — for tighter site maneuvering.
Max platform height 20 m, max horizontal working range 17.2 m, 300 kg unlimited / 460 kg limited platform capacity, three occupants. Telescopic boom luffs -3° to +73°, flying jib (1,850 mm) luffs -65° to +70°. 360° continuous turntable rotation, ±160° platform rotation. 12.46 t dead weight, 10.08 m stowed length / 9.85 m transport length, 2,490 mm width. Drive speed 6.3 km/h stowed (highest in the small-K range), 0.6 km/h boom up or extended. 45% (24°) max gradeability, 300 mm ground clearance. Min turning radius 3,195 mm inside / 6,160 mm outside. 2,440 × 910 × 1,150 mm working platform. Sits between XGS20K (20.5 m) and XGS25K (25 m) — pick when 22 m of working height matches the project envelope.
Five aspects of the XGS22K that fit it to 22 m class self-propelled telescopic boom lift work: tighter 2.5 m wheelbase, dual-mode capacity, fastest drive speed in small-K range, tight turning radius, and small-K positioning.
22 m max working height, 20 m max platform height, 17.2 m max horizontal working range. 2,500 mm wheelbase — 500 mm shorter than the 3,000 mm compact-K standard (XGS25K and up). Shorter wheelbase translates to tighter maneuvering and lighter dead weight for the same telescopic boom class.
300 kg unlimited platform capacity for full reach envelope operation, 460 kg limited capacity mode for heavier crew + tooling. Three-occupant platform (2,440 × 910 × 1,150 mm). ±160° platform rotation, 360° continuous turntable rotation. Working slope tolerance X-3° / Y-3°.
6.3 km/h max drive speed stowed — fastest in the XCMG small-K range (vs 6 km/h on XGS28K(III), 5.5 km/h on XGS30K/XGS32K, 5.1 km/h on XGS25K). 0.6 km/h crawl speed when boom is up or extended. 45% (24°) max gradeability. Faster site repositioning suits rental fleet operators rotating units across multiple work zones.
3,195 mm inside / 6,160 mm outside turning radius — tighter than the XGS25K's 3,500 mm inside. 2,500 mm wheelbase. 300 mm ground clearance. Suits congested factory work, narrow industrial corridors, and indoor steel structure installation.
12,460 kg dead weight — within 10 kg of XGS25K (12,750 kg) for transport-cost-equivalent fleet rotations. 10,080 × 2,490 × 2,530 mm stowed dimensions; 9,850 × 2,490 × 3,000 mm transport configuration. Fits standard low-loader transport without specialty permits. Suits rental fleet operations and small-mid contractors.
| Parameter | Unit | Value |
|---|---|---|
| Working height | mm | 22000 |
| Max. platform height | m | 20 |
| Max. working range | m | 17.2 |
| Lift capacity | kg | 300 (unlimited) / 460 (limited) |
| Max. occupants | - | 3 |
| Weight | kg | 12460 |
| Overall dimension - stowed | mm | 10080×2490×2530 |
| Overall dimension - transportation | mm | 9850×2490×3000 |
| Platform dimensions | mm | 2440×910×1150 |
| Wheelbase | mm | 2500 |
| Fly jib length | mm | 1850 |
| Ground clearance | mm | 300 |
| Telescopic boom luffing range | ° | -3 to +73 |
| Flying jib luffing range | ° | -65 to +70 |
| Turntable rotation | ° | 360 |
| Platform rotation | ° | 160 |
| Drive speed - stowed | km/h | 6.3 |
| Drive speed - boom up/extended | km/h | 0.6 |
| Min. turning radius | mm | 3195 inside / 6160 outside |
| Max. gradeability | % | 45 (24°) |
| Max. working slope | ° | X-3 / Y-3 |
Tell us your spec, budget, and destination port. You'll get a matching shortlist with photos, working videos, and pricing within 24 hours.
