22 m Electric Telescopic Boom Lift — 3-Person Platform
Electric self-propelled telescopic boom lift, 22.9 m maximum working height and 20.9 m platform height. 15.4 m maximum horizontal working range. 300 kg unlimited lift capacity across the full envelope. 3-person platform sized 2440 x 910 x 1150 mm — fits two operators plus a helper or shared toolkit. 10.5 ton unit weight. Non-marking off-road tires and axle balancing as standard, 40 percent gradeability. Zero emission and low noise for indoor finished-interior work.

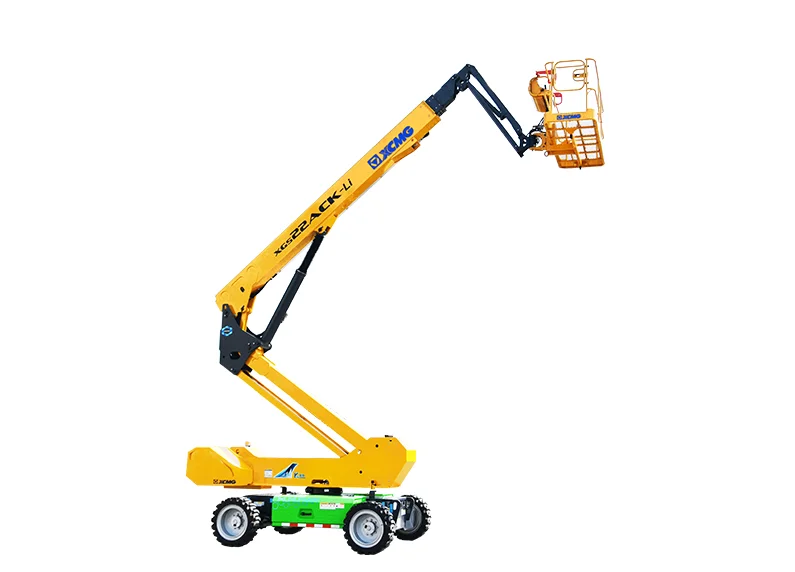

The XCMG XGS22ACK is an electric self-propelled telescopic boom lift in the 22-meter working height class. Maximum platform height is 20.9 m, working height 22.9 m, horizontal working range 15.4 m — broader reach than the smaller 18 m and 20 m siblings. Lift capacity is 300 kg unlimited; the 2440 x 910 x 1150 mm platform carries up to 3 occupants without zone derating.
Unit weight is 10.5 tons; stowed dimensions 9260 x 2490 x 2720 mm, transport profile 6790 x 2270 x 3000 mm. Drive speed 5 km/h stowed and 0.6 km/h elevated. Gradeability is 40 percent (22 degrees), turning radius 3.5 m inside / 5.5 m outside. Telescopic boom luffing range is -5 to +75 degrees, with a 1.85 m flying jib (-65 to +70 degrees). Turntable 360 degrees, platform rotation 160 degrees.
Standard fit of non-marking off-road tires plus axle balancing system — runs outdoor sites and indoor finished interiors. Zero emission, low noise. Sibling XGS22ACK-Li shares the same envelope with lithium-ion battery pack option.
Five aspects of the XGS22ACK that fit it to 22-meter indoor/outdoor aerial work with up to 3 occupants: working envelope, broader-platform fit, non-marking off-road tires with axle balancing, zero-emission electric drivetrain, and parts compatibility across the XCMG XGS-ACK fleet.
20.9 m maximum platform height, 22.9 m maximum working height, 15.4 m maximum working range — broader reach than the smaller 18 m and 20 m XGS-ACK siblings. Telescopic boom luffing range -5 to +75 degrees plus 1.85 m flying jib (-65 to +70 degrees). 360-degree turntable rotation, 160-degree platform rotation.
Larger 2440 x 910 x 1150 mm platform fits up to 3 occupants — two operators plus a helper, or one operator with a shared toolkit / fixture trolley. Step up in occupancy capacity from the 2-person XGS18ACK and XGS20ACK platforms (1830 x 760 mm). 300 kg unlimited rating maintained across the full envelope.
Standard fit of non-marking off-road tires plus an axle balancing system. Same tire set drives outdoor construction sites with uneven surfaces and operates inside finished interiors without leaving marks. 40 percent (22-degree) gradeability, 300 mm ground clearance, 3500 mm inside / 5500 mm outside turning radius.
Electric drive with zero exhaust emission and low noise — usable in indoor warehouses, retail spaces, factories, hospitals, and other emission-controlled environments without ventilation accommodations. 10.5 ton weight on the 9260 x 2490 x 2720 mm stowed footprint. Drive speed 5 km/h stowed, 0.6 km/h up or extended.
Boom sections, platform components, hydraulic valves, and electrical control elements share core part numbers across the XGS-ACK lineup (XGS18ACK through XGS22ACK and ACK-Li variants up to 45 meters). Lower inventory carrying cost for rental fleet operators running mixed-height XCMG rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | mm | 22900 |
| Max. platform height | m | 20.9 |
| Max. working range | m | 15.4 |
| Lift capacity | kg | 300 (unlimited) |
| Weight | kg | 10500 |
| Max. occupants | - | 3 |
| Overall dimensions (stowed) | mm | 9260 x 2490 x 2720 |
| Overall dimensions (transport) | mm | 6790 x 2270 x 3000 |
| Platform dimensions | mm | 2440 x 910 x 1150 |
| Wheelbase | mm | 2500 |
| Fly jib length | mm | 1850 |
| Ground clearance | mm | 300 |
| Telescopic boom luffing range | - | -5 to +75 deg |
| Flying jib luffing range | - | -65 to +70 deg |
| Turntable rotation | - | 360 deg |
| Platform rotation | - | 160 deg |
| Drive speed (stowed) | km/h | 5 |
| Drive speed (up/extended) | km/h | 0.6 |
| Turning radius (inside/outside) | mm | 3500 / 5500 |
| Max. gradeability | - | 40% (22 deg) |
