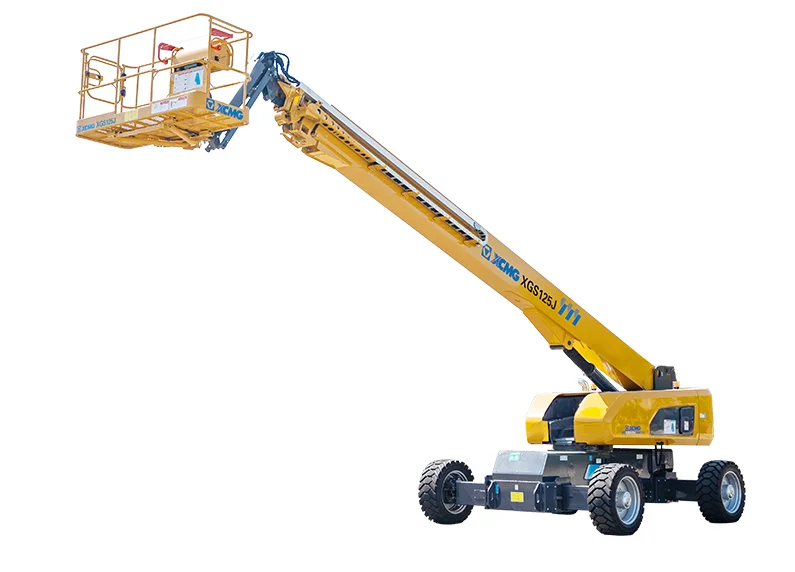

XCMG XGS125J-ANSI Telescopic Boom Lift

ANSI A92.20 standard certification (US-spec replacement for older A92.5 standards). Required for rental fleet operators and contractors working in the US, Canada, and other jurisdictions that follow ANSI standards for self-propelled boom-supported elevating work platforms. ANSI configuration uses imperial-unit instrumentation and ANSI-compliant operator manual + safety markings.

131 ft 10 in (≈40.2 m) max working height, 125 ft 4 in max platform height, 81 ft 8 in (≈24.9 m) max horizontal working range. Boom luffing -6.5° to +75° — wider negative range than the larger 158J-ANSI (0° to +80°) for below-grade workpoint access. Sized for mid-rise facade work, bridge underside inspection, and industrial maintenance.

661 lbs unrestricted platform capacity for full reach envelope, 1,014 lbs restricted capacity mode for heavier crew + tooling at limited reach. 360° continuous turntable rotation. Configuration matches typical 2-3 occupant ANSI MEWP work patterns.

2.8 mph max travel speed. 12 ft 5 in wheelbase — significantly shorter than the 158J-ANSI's 17 ft 2 in. 40% max gradeability. 47,310 lbs total weight. Shorter wheelbase suits sites with tighter access constraints and lower overall transport weight than the 158J-ANSI (53,881 lbs).

Shared powertrain and boom architecture with the XGS40K metric variant (40.2 m working height). Spares pool overlap reduces inventory carrying cost for fleet operators running mixed ANSI and metric XCMG aerial work platforms. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
