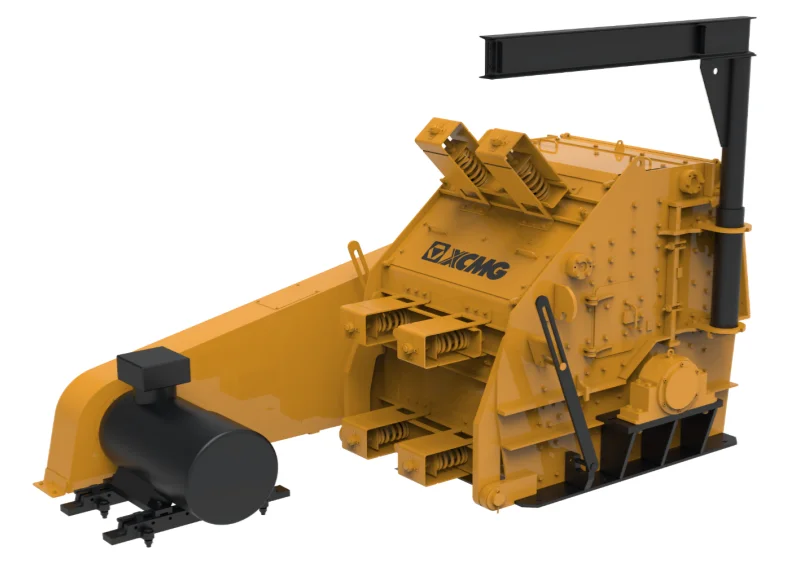

350–600 t/h XCMG Impact Crusher — 2040×1130 mm Feed Inlet
Impact crusher for ≤150 MPa natural stone and C&D waste recycling. 500 mm maximum feedstock, 2040 × 1130 mm feed inlet, 350–600 t/h productivity, 0–40 mm discharge (70%–85% within range). 2 × 250 kW motors driving the rotor through a 20-belt narrow V-belt arrangement. 38.5 t machine weight, 5000 × 3600 × 3090 mm footprint. Sits between the XGF1320 (300–500 t/h) and XGF1523 (450–700 t/h) in the XCMG impact crusher line.
The XCMG XGF1520 is an impact crusher for natural stones up to 150 MPa and construction-waste recycling. 500 mm maximum feedstock, 2040 × 1130 mm feed inlet, 350–600 t/h productivity, 0–40 mm discharge opening (70%–85% of product within range). 38.5 t machine weight, 5000 × 3600 × 3090 mm footprint.
Drive is motor plus narrow V-belt — twenty V-belts to two 250 kW motors (500 kW installed). V-belts absorb impact shock from the chamber without transferring it to the motor shaft, and replacement belts are a standard wear part rather than an OEM-restricted spare.
In the XCMG impact crusher line the XGF1520 sits between the XGF1320 (300–500 t/h, 400 mm feedstock, 2×160 kW) and XGF1523 (450–700 t/h, 600 mm feedstock, 2×315 kW). The 500 mm feed envelope matches output from primary XGE jaw crushers across the range. Fits secondary crushing in stationary aggregate plants targeting 400–600 t/h, urban C&D recycling lines, and limestone-class soft-to-medium rock production. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
Five points on the XGF1520 that fit it to 400–600 t/h secondary impact crushing: throughput, feed envelope, V-belt drive, sibling positioning, and target sectors.
Rated 350–600 t/h productivity with 2 × 250 kW (500 kW) installed motor power. Steps up from the XGF1320 (300–500 t/h, 2×160 kW) for higher-throughput stationary aggregate work, sits below the XGF1523 (450–700 t/h, 2×315 kW) for sites that don't need the larger feed envelope.
Accepts 500 mm maximum feedstock through a 2040 × 1130 mm feed inlet. Discharge opening 0–40 mm with 70%–85% of product within range. Matches output from XCMG XGE0810/XGE0812 primary jaw crushers (≤500 mm range) for direct upstream pairing.
Motor + narrow V-belt drive with 20 belts splitting load between two 250 kW motors and the rotor shaft. V-belts absorb shock loading from oversize or tramp feedstock without transferring it to the motor shaft. Belts are standard wear consumables — replaceable from open-market suppliers rather than requiring OEM-restricted spares.
Specified for ≤150 MPa materials: limestone, dolomite, soft-to-medium sandstone, demolition concrete, and reclaimed asphalt pavement. Not specified for hard quartzite or basalt above 150 MPa — those workloads belong on the XGY single-cylinder or XPY multi-cylinder cone lines.
Mid-size of the XGF impact crusher series sold via me-equipment.com. Above the XGF1320 (400 mm feedstock, 30.2 t) and below the XGF1523 (600 mm feedstock, 46 t). Parts overlap across the XGF line — rotors, blow bars, impact plates share part numbers — lowers inventory carrying cost for operators running mixed XGF rosters.
| Parameter | Unit | Value |
|---|---|---|
| Hardness of crushed materials | MPa | ≤150 |
| Max. feedstock size | mm | 500 |
| Feed inlet dimensions | mm | 2040 × 1130 |
| Range of discharge opening | mm | 0–40 (70%–85%) |
| Productivity | t/h | 350–600 |
| Driving type | - | Motor + narrow V belt |
| Number of narrow V-belts | - | 20 |
| Motor power | kW | 2 × 250 |
| Overall weight | t | 38.5 |
| Overall dimensions (L×W×H) | mm | 5000 × 3600 × 3090 |
