300–500 t/h XCMG Impact Crusher — 2090×950 mm Feed Inlet
Impact crusher for ≤150 MPa natural stone and C&D waste recycling. 400 mm maximum feedstock, 2090 × 950 mm feed inlet, 300–500 t/h productivity, 0–40 mm discharge (70%–85% within range). 2 × 160 kW motors driving the rotor through a 16-belt narrow V-belt arrangement — V-belts absorb shock from oversize feed and replacement belts are a standard wear part. 30.2 t machine weight, 4450 × 3434 × 2900 mm footprint. Sits below the XGF1520 (350–600 t/h) and XGF1523 (450–700 t/h) in the XCMG impact crusher line.

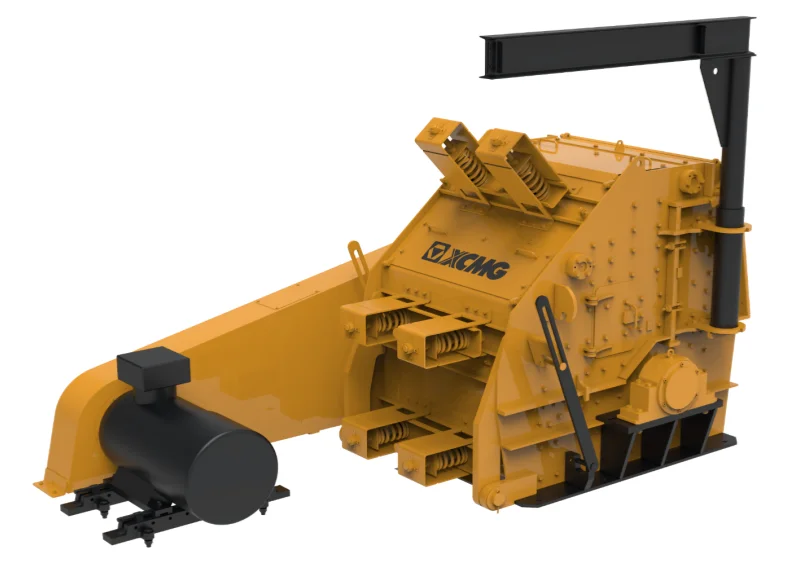

The XCMG XGF1320 is an impact crusher rated for natural stones up to 150 MPa hardness and construction-waste recycling. 400 mm maximum feedstock, 2090 × 950 mm feed inlet, 300–500 t/h throughput, 0–40 mm discharge opening (with 70%–85% of product within range). 30.2 t machine weight, 4450 × 3434 × 2900 mm footprint.
Drive is motor plus narrow V-belt — sixteen V-belts to two 160 kW motors (320 kW installed). The V-belt arrangement absorbs shock loading from oversize feedstock without transferring it to the motor shaft, and replacement belts are a standard wear part rather than an OEM-restricted spare.
In the XCMG impact crusher line the XGF1320 sits below the XGF1520 (350–600 t/h, 500 mm feedstock) and XGF1523 (450–700 t/h, 600 mm feedstock). It fits secondary crushing in aggregate plants producing 300–500 t/h, urban C&D waste recycling lines, and mid-tonnage stationary crushing where 400 mm feed size matches upstream jaw-crusher output. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
Five points on the XGF1320 that fit it to mid-tonnage stationary impact crushing: throughput band, feed envelope, V-belt drive, line positioning vs sibling XGF1520/XGF1523, and target application sectors.
Rated 300–500 t/h productivity with 2 × 160 kW (320 kW) installed motor power. Sized for aggregate plants and recycling lines in the 300–500 t/h band — above the small portable crushers used by jobbing contractors, below the 600–700 t/h tonnage of the XGF1520 and XGF1523 siblings.
Accepts 400 mm maximum feedstock through a 2090 × 950 mm feed inlet. Discharge opening 0–40 mm with 70%–85% of product within range. Fits secondary crushing downstream of a primary jaw crusher producing ≤400 mm output, or as a stand-alone unit for soft-to-medium rock and C&D waste where feed is pre-sized.
Motor + narrow V-belt drive with 16 belts splitting load between two 160 kW motors and the rotor shaft. V-belts absorb shock loading from oversize or tramp feedstock without transferring it to the motor shaft. Belts are a standard wear consumable — replaceable from open-market suppliers rather than requiring OEM-restricted spares.
Specified for materials up to 150 MPa hardness: limestone, dolomite, soft sandstone, demolition concrete, and reclaimed asphalt pavement. Suited for aggregate production and urban C&D waste recycling lines. Not specified for hard quartzite or basalt above 150 MPa — those workloads belong on the XGY cone crusher line.
Entry of the XGF impact crusher series sold via me-equipment.com. Moves up to the XGF1520 (500 mm feedstock, 350–600 t/h, 2×250 kW) and XGF1523 (600 mm feedstock, 450–700 t/h, 2×315 kW). Parts overlap across the XGF line lowers inventory cost for operators running mixed XGF rosters.
| Parameter | Unit | Value |
|---|---|---|
| Hardness of crushed materials | MPa | ≤150 |
| Max. feedstock size | mm | 400 |
| Feed inlet dimensions | mm | 2090 × 950 |
| Range of discharge opening | mm | 0–40 (70%–85%) |
| Productivity | t/h | 300–500 |
| Driving type | - | Motor + narrow V belt |
| Number of narrow V-belts | - | 16 |
| Motor power | kW | 2 × 160 |
| Overall weight | t | 30.2 |
| Overall dimensions (L×W×H) | mm | 4450 × 3434 × 2900 |
