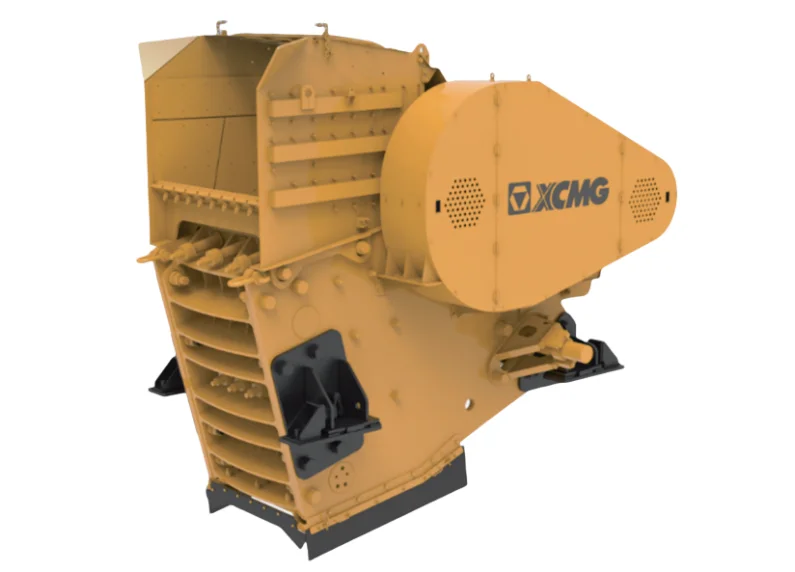

105–390 t/h XCMG Jaw Crusher — 580×930 mm Feed Inlet
Jaw crusher for primary coarse crushing of ores and natural stones. 580 × 930 mm feed inlet, 60–175 mm discharge opening, 105–390 t/h productivity. 90 kW motor, 330 r/min main shaft speed. 12.86 t machine weight, 2986 × 2045 × 1925 mm footprint. Entry-tonnage model in the XCMG jaw-crusher line (XGE0609 → XGE0810 → XGE0812), sized for 100–400 t/h aggregate plants, ore primary reduction, and contractor crushed-stone production.
The XCMG XGE0609 is a jaw crusher built for primary coarse crushing of ores and natural stones. 580 × 930 mm feed inlet, 60–175 mm discharge opening, 105–390 t/h productivity. 90 kW motor, 330 r/min main shaft. 12.86 t machine weight, 2986 × 2045 × 1925 mm footprint.
This is the entry-tonnage model in the XCMG jaw-crusher line as listed on me-equipment.com. The XGE0810 (1060 × 700 mm inlet, 150–500 t/h, 110 kW) and XGE0812 (760 × 1150 mm inlet, 165–520 t/h, 132 kW) sit above it. The XGE0609 fits stationary aggregate plants in the 100–400 t/h band, primary reduction in metallurgy and mining ore lines, and contractor crushed-stone production where the smaller chamber matches site-fed run-of-quarry rock.
12.86 t machine weight keeps foundation requirements lower than the heavier siblings — relevant for temporary aggregate setups, small-mine satellite operations, or replacement of legacy crushers without re-pouring foundations. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
Five points on the XGE0609 that fit it to 100–400 t/h primary jaw crushing: chamber sizing, throughput band, motor sizing, line position vs XGE0810/XGE0812, and target sectors.
580 × 930 mm feed inlet accepts run-of-quarry rock matched to the chamber. Discharge opening adjustable 60–175 mm to match downstream secondary equipment — paired with the XGY single-cylinder cone crushers for fine reduction, or directly with XGF impact crushers for limestone-class aggregates.
105–390 t/h productivity at 90 kW installed motor. Suited to 100–400 t/h aggregate plants, contractor crushed-stone work, and ore primary reduction at small-to-mid mine sites where higher-tonnage XGE0810 (110 kW) and XGE0812 (132 kW) chambers would be over-specified.
12.86 t total weight in a 2986 × 2045 × 1925 mm footprint. Lower foundation load than the XGE0810 (17.05 t) and XGE0812 (22.67 t) siblings — relevant for temporary aggregate setups, small-mine satellite operations, and replacement of legacy crushers without re-pouring foundations.
Entry of the XCMG XGE jaw-crusher series sold via me-equipment.com. Steps up to the XGE0810 (1060×700 mm inlet, 150–500 t/h, 110 kW, 17.05 t) and XGE0812 (760×1150 mm inlet, 165–520 t/h, 132 kW, 22.67 t). Wear parts (jaw plates, toggle plates, side liners) share part numbers across the XGE line for fleet operators running mixed tonnages.
Specified for mining ore primary crushing, water-engineering aggregate supply, metallurgical pre-treatment, and construction-aggregate production. Hard-rock specification — pairs with XGY single-cylinder cone crushers for secondary/tertiary reduction in stationary aggregate plants.
| Parameter | Unit | Value |
|---|---|---|
| Feed inlet dimensions | mm | 580 × 930 |
| Range of discharge opening | mm | 60–175 |
| Productivity | t/h | 105–390 |
| Main shaft speed | r/min | 330 |
| Overall weight | kg | 12860 |
| Overall dimensions (L×W×H) | mm | 2986 × 2045 × 1925 |
| Motor power | kW | 90 |
