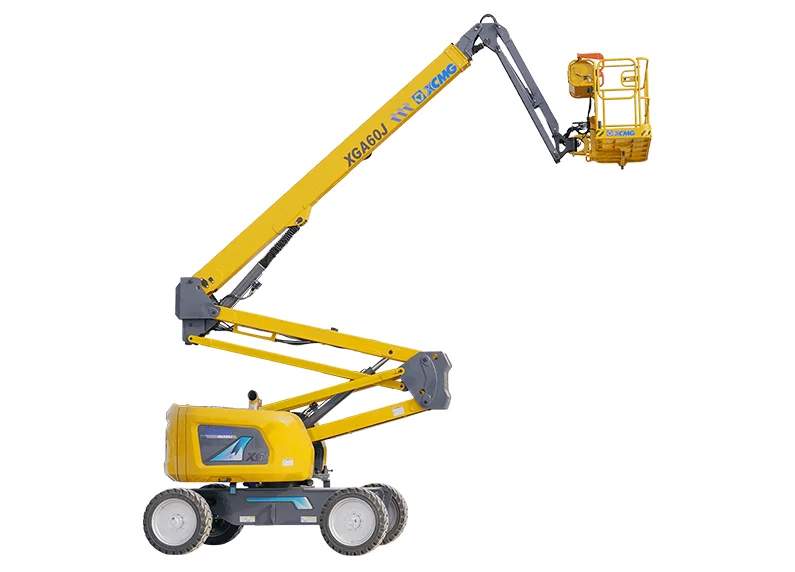

67 ft 8 in / 20.63 m XCMG ANSI-Spec Articulating Boom Lift
ANSI-spec engine-powered articulating boom lift with 67 ft 8 in (20.63 m) maximum working height. 61 ft 1 in (18.63 m) platform height, 39 ft 8 in (12.08 m) maximum working range. Load capacity 705 lbs restricted / 498 lbs unrestricted. 21,826 lbs total weight, 8 ft 2 in wheelbase. Travel speed 3.4 mph. 45 percent maximum gradeability. 360-degree continuous turntable rotation. Specification published in imperial units for ANSI A92.20 markets — mid-size in XCMG's ANSI-spec articulating boom lift line.
The XGA60J-ANSI is the mid-size ANSI-spec engine-powered articulating boom lift from XCMG — 67 ft 8 in (20.63 m) working height, 61 ft 1 in (18.63 m) platform height, and 39 ft 8 in (12.08 m) maximum working range. Maximum load capacity is 705 lbs (320 kg) restricted and 498 lbs (226 kg) unrestricted. The first boom luffs from 0 to +72 degrees and the second boom from 0 to +73 degrees. Turntable rotation is 360 degrees continuous.
Total weight in travel is 21,826 lbs (9,900 kg). Wheel base is 8 ft 2 in (2,500 mm). Travel speed is 3.4 mph. Maximum gradeability is 45 percent. Specification is published in imperial units for the North American ANSI A92.20 market — same machine envelope as the XGA20K-AS metric sibling.
Suited to commercial fit-out, mid-rise industrial maintenance, venue install and rigging, and rental fleets serving North American job sites that require ANSI A92.20-compliant aerial work platforms. Sits between the smaller XGA46J-ANSI (54 ft 7 in) and the largest XGA80J-ANSI (87 ft 3 in) in XCMG's ANSI-spec articulating boom lift line.
Five aspects of the XGA60J-ANSI that fit it to North American 60 ft articulating boom lift work: ANSI A92.20 specification, mid-size positioning, 705 lbs restricted load, 360-degree turntable, and metric sibling XGA20K-AS.
Specification published in imperial units (ft, lbs, mph) and aligned with ANSI A92.20 mobile elevating work platform standards for North American jobsites. Sits between the smaller XGA46J-ANSI (54 ft 7 in) and the largest XGA80J-ANSI (87 ft 3 in) in XCMG's ANSI-spec articulating boom lift line.
67 ft 8 in (20.63 m) maximum working height with 61 ft 1 in (18.63 m) platform height. Sized for the bulk of commercial and industrial access work in North American markets where a 46 ft unit falls short but an 87 ft unit is more boom than the project requires. Typical for multi-story fit-out, mid-rise industrial maintenance, and venue rigging.
Dual-load configuration: 705 lbs restricted-reach (two operators plus full tools and materials) and 498 lbs unrestricted-envelope (two operators with lighter materials at full reach). Restricted mode supports two-person trade crews handling cladding, MEP install, lighting fixtures, and similar industrial loads at moderate reach.
360-degree continuous turntable rotation — unrestricted slew for work patterns that move the platform around a central feature without rewinding the slew between positions. Higher productivity on projects where the boom covers multiple work positions from a single chassis location.
Same machine envelope as the metric-spec XGA20K-AS — boom geometry, turntable, chassis. Differs only in labeling and certification specification (ANSI A92.20 imperial vs metric). Fleet operators running cross-market rosters can share boom sections and core chassis parts between ANSI and metric units. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | ft | 67'8" |
| Max. platform height | ft | 61'1" |
| Max. working range | ft | 39'8" |
| Max. load capacity (unrestricted) | lbs | 498 |
| Max. load capacity (restricted) | lbs | 705 |
| 1st boom luffing range | ° | 0 to +72 |
| 2nd boom luffing range | ° | 0 to +73 |
| Turntable rotation | ° | 360 |
| Max. travel speed | mph | 3.4 |
| Max. gradeability | % | 45 |
| Wheel base | ft | 8'2" |
| Total weight | lbs | 21826 |
