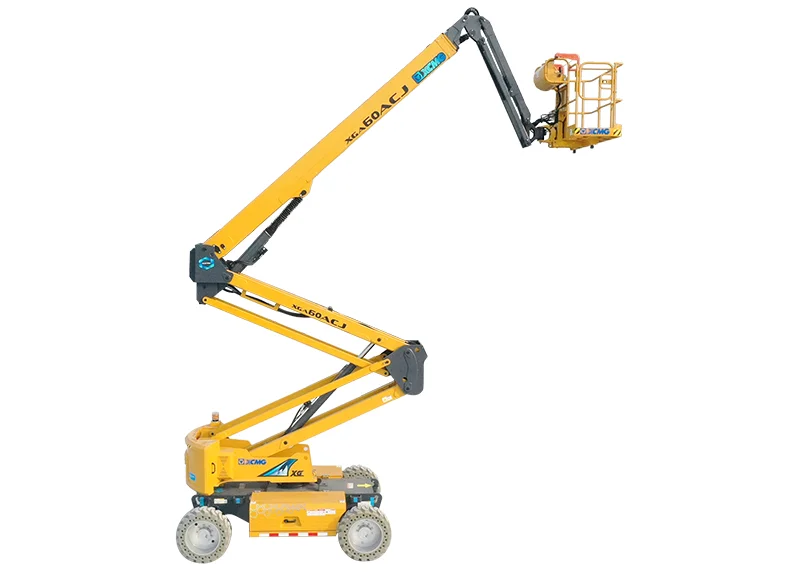

XCMG XGA60ACJ-ANSI Articulating Boom Lift

Configured to ANSI A92.20 (2018 design standard) for North American rental fleets and contractors working to OSHA specification. 67 ft 7 in (20.60 m) maximum working height — the upper-class platform-height entry in the XCMG North American articulating boom lift line.

Full 360° continuous turntable rotation — no slew stops. Distinct from the 355° rotation on the 32 ft, 45 ft, and 52 ft ANSI siblings. Lets the operator swing the platform across a complete circumference without repositioning the chassis — useful for circumferential work patterns and high-angle work over vehicle access lanes.

45 percent maximum gradeability, compared with 30 percent on the 52 ft ANSI sibling — 50 percent higher slope rating. Suited for outdoor sloped construction sites, infrastructure access roads, and uneven terrain where the smaller ANSI siblings' slope envelope is exceeded.

First boom luffs 0 to +72°, second boom luffs 0 to +73° — both segments above 70° positive luff. Different geometry from the 32/45/52 ft ANSI siblings (which have negative-luff second booms). Tuned for high-angle reach and up-and-over geometry across rooftop equipment and parapets rather than below-pivot work.

Platform components, control valves, boom pins, and chassis parts share core part numbers with other XCMG aerial work platforms — lower inventory carrying cost for rental fleet operators running mixed XCMG rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
