59 ft Electric Articulating Boom Lift — ANSI A92.20 / Dual Capacity
59 ft (17.98 m) working height electric self-propelled articulating boom lift configured to ANSI A92.20 standards for North American market deployment. 52 ft 6 in platform height, 33 ft 2 in working range, dual capacity 564 lbs unrestricted / 771 lbs restricted. 355° turntable rotation. First boom 0 to +65°, second boom -11 to +75°. 2.98 mph max travel speed, 30 percent gradeability. 7 ft 9 in wheelbase, 18,960 lbs total weight. Battery-electric drivetrain.

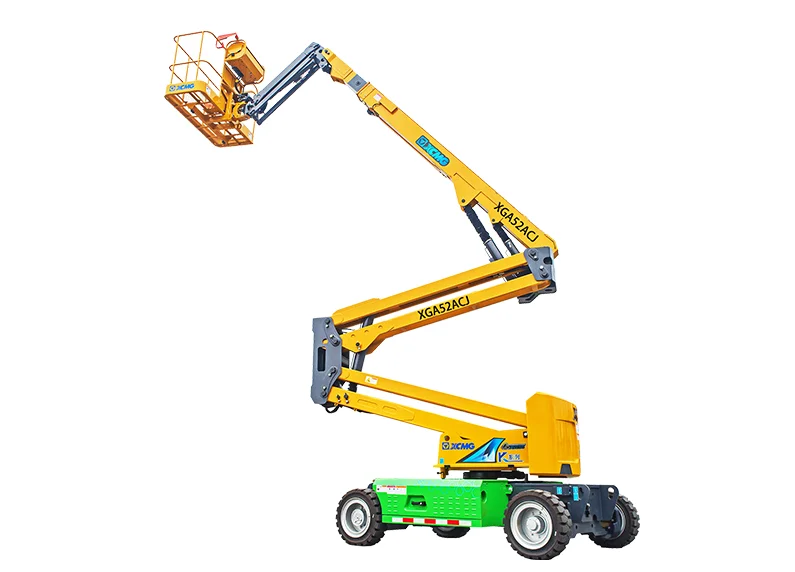

The XCMG XGA52ACJ-ANSI is a 59 ft working-height electric self-propelled articulating boom lift configured to ANSI A92.20 standards for North American market deployment.
52 ft 6 in (16.00 m) platform height, 33 ft 2 in (10.11 m) horizontal working range, dual capacity 564 lbs (256 kg) unrestricted / 771 lbs (350 kg) restricted. 355° turntable rotation. First boom 0 to +65°, second boom -11 to +75°. 2.98 mph (4.8 km/h) max travel speed, 30 percent gradeability. 7 ft 9 in wheelbase, 18,960 lbs (8,600 kg) total weight. Battery-electric drivetrain. ANSI A92.20 compliance covers the unit for North American rental fleets and contractors working to OSHA and ANSI specification. Sits one step above the 45 ft ANSI sibling — +7 ft 3 in platform height and +6 ft 4 in horizontal reach for projects crossing into the 16-meter platform-height envelope.
Five aspects of the XGA52ACJ-ANSI that fit it to ANSI-compliant 52 ft class articulating boom lift work: ANSI compliance, dual capacity load chart, sibling positioning, working envelope, and XCMG parts support.
Configured to ANSI A92.20 (2018 design standard for self-propelled boom-supported elevating work platforms) for North American rental fleets and contractors working to OSHA and ANSI specification.
Dual platform capacity: 564 lbs unrestricted and 771 lbs restricted. Lets projects size load configuration to actual task: 771 lbs restricted for two-person crews with tooling, 564 lbs unrestricted for full-envelope work. First non-dual-capacity ANSI unit in the upward direction of the line.
Sits one step above the 45 ft ANSI sibling: +7 ft 3 in platform height (52'6" vs 45'3"), +6 ft 4 in horizontal reach (33'2" vs 26'10"). 59 ft working envelope sized for projects crossing into the 16-meter platform-height band where 45 ft ANSI units are short on reach.
Two-segment boom geometry. First boom 0 to +65°, second boom -11 to +75° — wider negative second-boom luff than the smaller 45 ft sibling (-8°), supporting deeper below-pivot work envelope for under-floor access and pit-edge maintenance. 355° turntable rotation.
Platform components, control valves, boom pins, and chassis parts share core part numbers with other XCMG aerial work platforms — lower inventory carrying cost for rental fleet operators running mixed XCMG rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | ft | 59' |
| Max. platform height | ft | 52'6" |
| Max. working range | ft | 33'2" |
| Max. load capacity | lbs | 564 (unrestricted) / 771 (restricted) |
| 1st boom luffing range | ° | 0 to 65 |
| 2nd boom luffing range | ° | -11 to 75 |
| Turntable rotation | ° | 355 |
| Max. travel speed | mph | 2.98 |
| Max. gradeability | % | 30 |
| Wheelbase | ft | 7'9" |
| Total weight | lbs | 18960 |
| Compliance standard | - | ANSI A92.20 |
