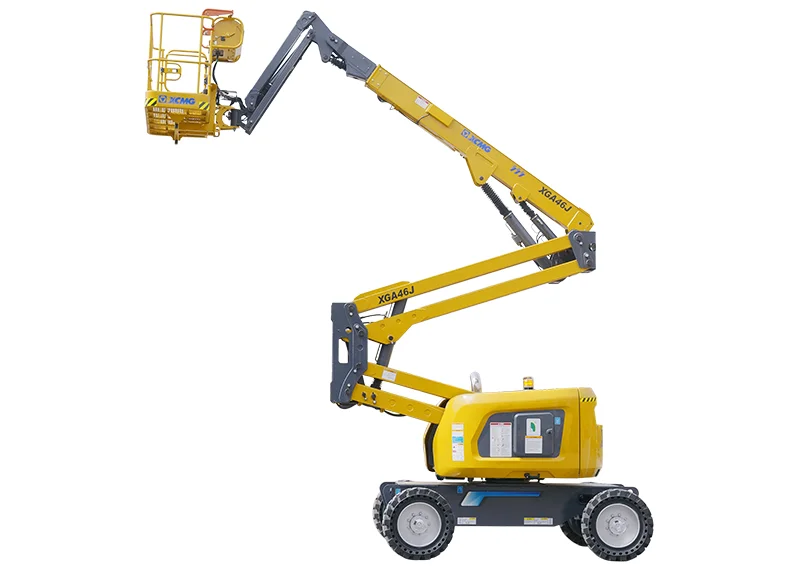

54 ft 7 in / 16.63 m XCMG ANSI-Spec Articulating Boom Lift
ANSI-spec engine-powered articulating boom lift with 54 ft 7 in (16.63 m) maximum working height — smallest in XCMG's ANSI-spec articulating boom lift line. 48 ft (14.63 m) platform height, 28 ft 11 in (8.82 m) maximum working range. Load capacity 705 lbs restricted / 498 lbs unrestricted. 16,755 lbs total weight, 7 ft 9 in wheelbase. Travel speed 3.4 mph. 45 percent maximum gradeability. 355-degree turntable rotation. Specification published in imperial units for ANSI A92.20 markets.
The XGA46J-ANSI is the smallest ANSI-spec engine-powered articulating boom lift from XCMG — 54 ft 7 in (16.63 m) working height, 48 ft (14.63 m) platform height, and 28 ft 11 in (8.82 m) maximum working range. Maximum load capacity is 705 lbs (320 kg) restricted and 498 lbs (226 kg) unrestricted. The first boom luffs from 0 to +65 degrees and the second boom from -11 to +75 degrees. Turntable rotation is 355 degrees.
Total weight in travel is 16,755 lbs (7,600 kg). Wheel base is 7 ft 9 in (2,360 mm). Travel speed is 3.4 mph. Maximum gradeability is 45 percent. Specification is published in imperial units for the North American ANSI A92.20 market — same machine envelope as the XGA16K-AS metric sibling.
Suited to low-to-mid-rise commercial fit-out, steel structure work, retail and warehouse maintenance, and rental fleets serving North American job sites that require ANSI A92.20-compliant aerial work platforms. Sits below the XGA60J-ANSI (67 ft 8 in) and XGA80J-ANSI (87 ft 3 in) in XCMG's ANSI-spec articulating boom lift line.
Five aspects of the XGA46J-ANSI that fit it to North American 46 ft articulating boom lift work: ANSI A92.20 specification, entry-size positioning, 705 lbs restricted load, second-boom negative luffing, and metric sibling XGA16K-AS.
Specification published in imperial units (ft, lbs, mph) and aligned with ANSI A92.20 mobile elevating work platform standards for North American jobsites. Smallest in XCMG's ANSI-spec articulating boom lift line — sits below the XGA60J-ANSI (67 ft 8 in) and XGA80J-ANSI (87 ft 3 in).
54 ft 7 in (16.63 m) maximum working height with 48 ft (14.63 m) platform height. Sized for low-to-mid-rise commercial fit-out, steel structure work, retail and warehouse maintenance, and venue install where a smaller boom envelope fits the project. Smaller transport footprint than the 60J/80J siblings — lighter trailer requirements and simpler road permits.
Dual-load configuration: 705 lbs restricted-reach (two operators plus full tools and materials) and 498 lbs unrestricted-envelope (two operators with lighter materials at full reach). Same load envelope as the larger XGA60J-ANSI — load capacity does not penalize the smaller boom size.
Second boom luffing range -11 to +75 degrees — negative luffing for up-and-over access to clear roof edges and equipment obstructions without repositioning the chassis. First boom luffs 0 to +65 degrees.
Same machine envelope as the metric-spec XGA16K-AS — boom geometry, turntable, chassis. Differs only in labeling and certification specification (ANSI A92.20 imperial vs metric). Fleet operators running cross-market rosters can share boom sections and core chassis parts between ANSI and metric units. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | ft | 54'7" |
| Max. platform height | ft | 48' |
| Max. working range | ft | 28'11" |
| Max. load capacity (unrestricted) | lbs | 498 |
| Max. load capacity (restricted) | lbs | 705 |
| 1st boom luffing range | ° | 0 to +65 |
| 2nd boom luffing range | ° | -11 to +75 |
| Turntable rotation | ° | 355 |
| Max. travel speed | mph | 3.4 |
| Max. gradeability | % | 45 |
| Wheel base | ft | 7'9" |
| Total weight | lbs | 16755 |
