51 ft 10 in Electric Articulating Boom Lift — ANSI A92.20
51 ft 10 in (15.80 m) working height electric self-propelled articulating boom lift configured to ANSI A92.20 standards for North American market deployment. 45 ft 3 in platform height, 26 ft 10 in working range, 500.45 lbs lift capacity. 355° turntable rotation. First boom 0 to +60°, second boom -8 to +75°. 3.23 mph max travel speed, 30 percent gradeability. 6 ft 7 in wheelbase, 15,221.9 lbs total weight. Battery-electric drivetrain.

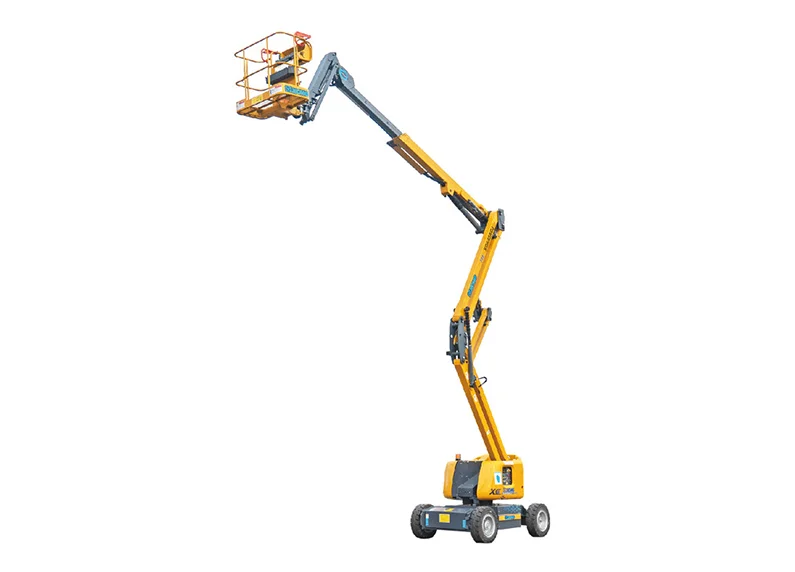

The XCMG XGA45ACJ-ANSI is a 51 ft 10 in working-height electric self-propelled articulating boom lift configured to ANSI A92.20 standards for North American market deployment.
45 ft 3 in (13.79 m) platform height, 26 ft 10 in (8.18 m) horizontal working range, 500.45 lbs (227 kg) lift capacity. 355° turntable rotation. First boom 0 to +60°, second boom -8 to +75°. 3.23 mph (5.2 km/h) max travel speed, 30 percent gradeability. 6 ft 7 in wheelbase, 15,221.9 lbs (6,904 kg) total weight. Battery-electric drivetrain. ANSI A92.20 compliance covers the unit for North American rental fleets and contractors working to OSHA and ANSI specification. Sits between the 32 ft and 52 ft ANSI siblings in the XCMG North American articulating boom lift line — chosen when the project envelope is bounded by mid-rise façade access at 13–14 m platform height.
Five aspects of the XGA45ACJ-ANSI that fit it to ANSI-compliant 45 ft class articulating boom lift work: ANSI compliance, boom geometry, working envelope, sibling positioning in the ANSI series, and XCMG parts support.
Configured to ANSI A92.20 (2018 design standard for self-propelled boom-supported elevating work platforms) for North American rental fleets and contractors working to OSHA and ANSI specification. Chosen by spec when project documentation calls out ANSI compliance.
Sits between the 32 ft and 52 ft ANSI siblings. +14 ft platform height over the 32 ft sibling (45'3" vs 31'4"), +4 ft 4 in horizontal reach (26'10" vs 22'6"). 51 ft 10 in working envelope sized for projects bounded by mid-rise façade access at 13–14 m platform height where a 32 ft unit is short on reach.
Two-segment boom geometry. First boom luffs 0 to +60°, second boom luffs -8 to +75°. Negative second-boom luff supports below-pivot work envelope for under-floor access and pit-edge maintenance. 355° turntable rotation lets the operator swing across a near-full circumference without repositioning the chassis.
Battery-electric drivetrain — 3.23 mph max travel speed, 30 percent gradeability. Zero on-site emissions for indoor warehouse, retail, factory floor, and emission-limited urban projects in North American markets. 6 ft 7 in wheelbase, 15,221.9 lbs total weight.
Platform components, control valves, boom pins, and chassis parts share core part numbers with other XCMG aerial work platforms — lower inventory carrying cost for rental fleet operators running mixed XCMG rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Max. working height | ft | 51'10" |
| Max. platform height | ft | 45'3" |
| Max. working range | ft | 26'10" |
| Max. load capacity | lbs | 500.45 |
| 1st boom luffing range | ° | 0 to 60 |
| 2nd boom luffing range | ° | -8 to 75 |
| Turntable rotation | ° | 355 |
| Max. travel speed | mph | 3.23 |
| Max. gradeability | % | 30 |
| Wheelbase | ft | 6'7" |
| Total weight | lbs | 15221.9 |
| Compliance standard | - | ANSI A92.20 |
