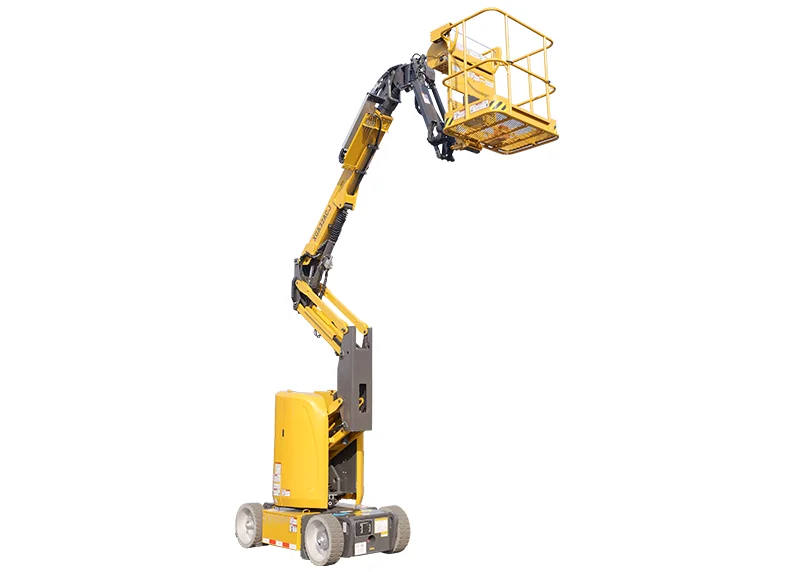

XCMG XGA32ACJ-ANSI Articulating Boom Lift

Configured to ANSI A92.20 (2018 design standard for self-propelled boom-supported elevating work platforms) for North American rental fleets and contractors working to OSHA and ANSI specification. Distinct configuration from the metric XGA-series units — chosen by spec when project documentation calls out ANSI compliance.

First boom luffs -12.5 to +70°, second boom luffs -5.5 to +75° — wider negative-luff range than typical metric articulating boom siblings. Lets the platform drop below pivot height for under-floor access, pit-edge work, and below-ground-floor maintenance — useful for industrial plant and infrastructure maintenance projects.

37 ft 11 in maximum working height, 31 ft 4 in platform height, 22 ft 6 in horizontal working range, 507 lbs lift capacity. Sized for indoor and outdoor mid-rise façade work, MEP installation, and warehouse maintenance in North American project sites. 355° turntable rotation for full-swing repositioning.

35 percent maximum gradeability — higher slope rating than typical 30 percent indoor electric units. 3.1 mph max travel speed. 5 ft 5 in wheelbase, 15,432 lbs total weight. Battery-electric drivetrain for zero on-site emissions on indoor warehouse, retail, factory, and emission-limited urban project sites.

Platform components, control valves, boom pins, and chassis parts share core part numbers with other XCMG aerial work platforms — lower inventory carrying cost for rental fleet operators running mixed XCMG rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
