23.6 m Lithium-Battery Articulating Boom Lift — 460 kg Capacity
23.6 m lithium-battery articulating boom lift. 21.6 m platform height, 14.1 m working range, 8.9 m up-and-over clearance. Triple capacity load chart: 230 kg unrestricted / 340 kg restricted / 460 kg further-restricted — 31 percent higher restricted capacity than the 350 kg AC-electric XGA20ACK and XGA22ACK siblings. 2-3 occupants. Three-segment boom with 1.85 m fly jib. 360° turntable, 160° platform rotation. 5.0 km/h stowed travel, 40 percent gradeability. Stowed envelope 9.83 m × 2.49 m × 2.62 m. 10,900 kg total weight.

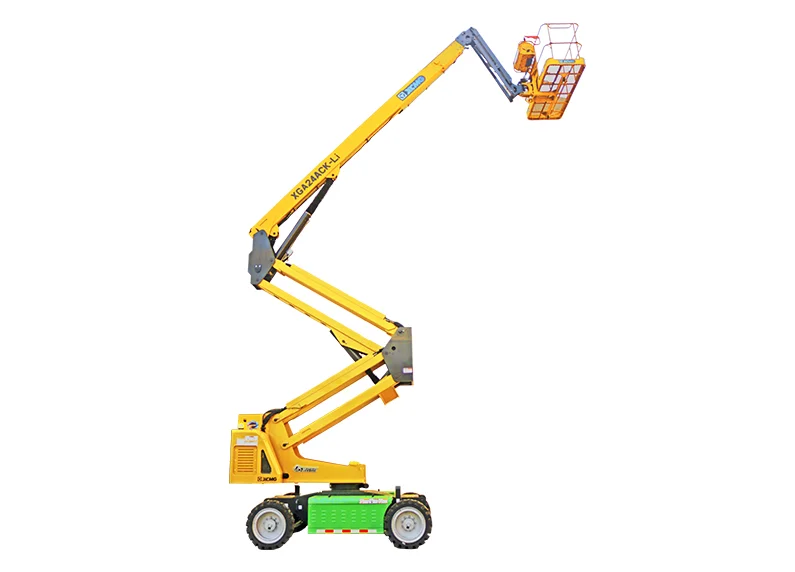

The XCMG XGA24ACK-Li is a 23.6 m lithium-battery articulating boom lift built for outdoor upper-mid construction, façade access, and structural steel work on projects where battery cycle life and on-shift recharge drive equipment choice.
21.6 m platform height, 14.1 m working range, 8.9 m up-and-over clearance. Triple-capacity load chart: 230 kg unrestricted / 340 kg restricted / 460 kg further-restricted — 31 percent higher restricted capacity than the 350 kg restricted modes on the XGA20ACK and XGA22ACK siblings. 2-3 occupants. Three-segment boom with 1.85 m fly jib: first boom -10 to +79°, second boom -36 to +70° (wider negative luff than the AC-mains-electric 20/22 m siblings), fly jib -65 to +70°. 360° turntable rotation, 160° platform rotation. 5.0 km/h stowed travel, 40 percent gradeability. 2,550 mm inside / 5,640 mm outside turning radius, 840 mm stowed tailswing. Stowed envelope 9.83 m × 2.49 m × 2.62 m, 10,900 kg total weight. Lithium-ion battery for full-shift run time and overnight recharge cycles.
Five aspects of the XGA24ACK-Li that fit it to lithium-battery 24-meter articulating boom lift work: lithium powertrain, triple capacity load chart, wider boom luff range, working envelope, and XCMG parts support.
Lithium-ion battery system (denoted by -Li model suffix) — designed for full-shift project work and overnight recharge cycles. Suits rental fleet duty in projects where on-shift recharge time, battery cycle life, and zero on-site emissions drive equipment choice over the AC-mains-electric siblings.
Triple capacity load chart: 230 kg unrestricted / 340 kg restricted / 460 kg further-restricted. 460 kg further-restricted capacity is 31 percent higher than the 350 kg restricted modes on the AC-electric XGA20ACK and XGA22ACK siblings. Useful for projects needing three-occupant lift configuration with material and tooling weight.
Three-segment boom with 1.85 m fly jib. First boom -10 to +79°, second boom -36 to +70° — wider negative second-boom luff (-36°) than the AC-electric 20/22-meter siblings (0°), supporting below-pivot work geometry for under-floor access, basement vault work, and pit-edge maintenance. Fly jib -65 to +70°.
23.6 m maximum working height delivers 21.6 m platform height, 14.1 m horizontal working range, and 8.9 m up-and-over clearance. 14.1 m horizontal reach is 15 percent more than the 22-meter XGA22ACK sibling (12.23 m) — sized for projects where horizontal access geometry drives the equipment decision.
Platform components, control valves, boom pins, and chassis parts share core part numbers with other XCMG aerial work platforms — lower inventory carrying cost for rental fleet operators running mixed XCMG rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Working height | mm | 23600 |
| Max. platform height | m | 21.6 |
| Max. working range | m | 14.1 |
| Max. up-and-over clearance | m | 8.9 |
| Lift capacity | kg | 230 (unrestricted) / 340 (restricted) / 460 (further-restricted) |
| Max. occupants | - | 2/3 |
| Overall dimension - stowed | mm | 9830×2490×2620 |
| Overall dimension - transportation | mm | 7550×2490×3000 |
| Platform dimensions | mm | 2440×910×1150 |
| Wheelbase | mm | 2500 |
| Fly jib length | mm | 1850 |
| Ground clearance | mm | 300 |
| 1st boom luffing range | ° | -10 to +79 |
| 2nd boom luffing range | ° | -36 to +70 |
| Fly jib luffing range | ° | -65 to +70 |
| Turntable rotation | ° | 360 |
| Platform rotation | ° | 160 |
| Drive speed (stowed) | km/h | 5 |
| Drive speed (up or extended) | km/h | 0.6 |
| Min. turning radius (inside/outside) | mm | 2550 / 5640 |
| Turntable tailswing (stowed) | mm | 840 |
| Max. gradeability | % | 40 |
| Total weight | kg | 10900 |
