22.2 m Electric Articulating Boom Lift — 9.5 m Up-and-Over
22.2 m electric self-propelled articulating boom lift with three-segment boom plus 1.85 m fly jib. 20.21 m platform height, 12.23 m working range, 9.5 m up-and-over clearance, dual capacity 256/350 kg, 2-3 occupants. 360° continuous turntable rotation, 160° platform rotation. 4.5 km/h stowed travel, 0.6 km/h raised, 40 percent gradeability. 5,000 mm outside turning radius, 560 mm stowed tailswing. Stowed envelope 8.49 m × 2.49 m × 2.40 m. 10,100 kg dead weight, 2,500 mm wheelbase.

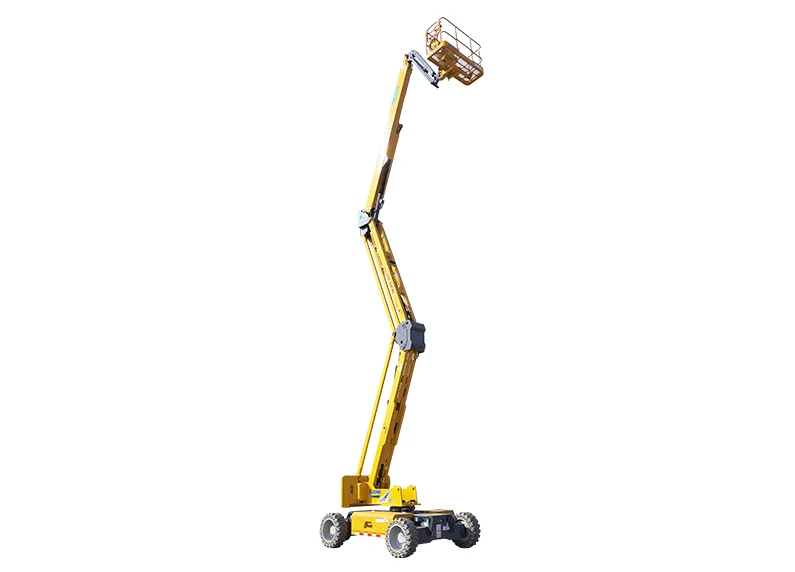

The XCMG XGA22ACK is a 22.2 m electric self-propelled articulating boom lift built for outdoor mid-rise to upper-mid construction, façade access, steel structure work, and infrastructure maintenance projects.
20.21 m platform height, 12.23 m working range, 9.5 m up-and-over clearance, dual platform capacity 256 kg unrestricted / 350 kg restricted, 2-3 occupants. Three-segment boom with 1.85 m fly jib: first boom 0–70°, second boom 0–71°, fly jib -65 to +70°. 360° continuous turntable rotation, 160° platform rotation. 4.5 km/h stowed travel, 0.6 km/h raised, 40 percent gradeability, 300 mm ground clearance. 5,000 mm outside turning radius, 560 mm stowed turntable tailswing. Stowed envelope 8.49 m × 2.49 m × 2.40 m. 10,100 kg dead weight, 2,500 mm wheelbase. Sits one step above the XGA20ACK in the XCMG electric articulating boom lift line — +1.6 m platform height, +0.25 m working range, +1.65 m up-and-over clearance for projects needing more reach without crossing into 24-meter class chassis weight.
Five aspects of the XGA22ACK that fit it to upper-mid 22-meter articulating boom lift work: working envelope, 9.5 m up-and-over clearance, sibling positioning vs the XGA20ACK, dual capacity load chart, and XCMG parts support.
22.2 m maximum working height delivers 20.21 m platform height and 12.23 m horizontal working range — sized for upper-mid rise construction, multi-story façade access, structural steel work above 18 m, and infrastructure projects where the 20-meter class is short by 1-2 m.
9.5 m maximum up-and-over clearance via three-segment boom plus 1.85 m fly jib — 21 percent more than the 7.85 m clearance on the 20-meter XGA20ACK sibling. Useful for working over taller rooftop equipment, multi-tier scaffolding, and deeper parapet obstructions.
Sits one step above the 20-meter XGA20ACK in the XCMG electric articulating boom lift line: +1.6 m platform height (20.21 vs 18.6 m), +0.25 m working range (12.23 vs 11.98 m), +1.65 m up-and-over clearance (9.5 vs 7.85 m). Same 8.49 m stowed length, 2.5 m wheelbase, and 360° continuous slew — minimum chassis impact for a step up in reach.
Dual platform capacity 256 kg unrestricted / 350 kg restricted, 2-3 occupants. 360° continuous turntable rotation with no slew stops. 160° platform rotation. X-5°/Y-5° max working slope. 40 percent gradeability for outdoor sloped construction sites.
Platform components, control valves, boom pins, and chassis parts share core part numbers with other XCMG aerial work platforms (including the 20-meter XGA20ACK sibling on the same chassis platform) — lower inventory carrying cost for rental fleet operators running mixed XCMG rosters. Genuine XCMG parts and service available through me-equipment.com's authorized dealer channel.
| Parameter | Unit | Value |
|---|---|---|
| Working height | mm | 22210 |
| Max. platform height | m | 20.21 |
| Max. working range | m | 12.23 |
| Max. up-and-over clearance | m | 9.5 |
| Lift capacity | kg | 256 (unrestricted) / 350 (restricted) |
| Max. occupants | - | 2/3 |
| Overall dimension - stowed | mm | 8490×2490×2400 |
| Overall dimension - transportation | mm | 8000×2490×2100 |
| Platform dimensions | mm | 1830×760×1150 |
| Wheelbase | mm | 2500 |
| Fly jib length | mm | 1850 |
| Ground clearance | mm | 300 |
| 1st boom luffing range | ° | 0 to +70 |
| 2nd boom luffing range | ° | 0 to +71 |
| Fly jib luffing range | ° | -65 to +70 |
| Turntable rotation | ° | 360 |
| Platform rotation | ° | 160 |
| Drive speed (stowed) | km/h | 4.5 |
| Drive speed (up or extended) | km/h | 0.6 |
| Min. turning radius (outside) | mm | 5000 |
| Turntable tailswing (stowed) | mm | 560 |
| Max. gradeability | % | 40 |
| Total weight | kg | 10100 |
