Engine-powered articulating boom lift with 20.63 m maximum working height. 18.63 m platform height, 12.08 m maximum working range. Load capacity 320 kg restricted / 226 kg unrestricted. 9,900 kg total weight, 2,500 mm wheelbase. Travel speed 5.5 km/h stowed, 0.6 km/h raised. 45 percent maximum gradeability. 360-degree continuous turntable rotation. Positioned between the XGA16K-AS (16.63 m) and XGA26K-AS (26.6 m) in the AS line.

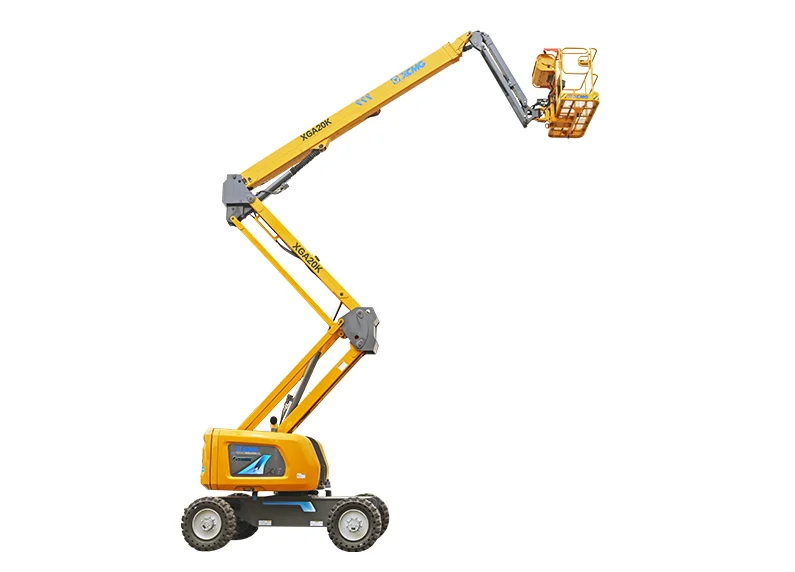

The XGA20K-AS is a 20.63 m engine-powered articulating boom lift in XCMG's XGA-K-AS series. Platform height is 18.63 m and maximum working range is 12.08 m. Load capacity is 320 kg in restricted mode and 226 kg unrestricted. The first boom luffs from 0 to +72 degrees and the second boom from 0 to +73 degrees. Turntable rotation is 360 degrees continuous.
Total weight in travel is 9,900 kg. Wheel base is 2,500 mm. Travel speed is 5.5 km/h stowed and 0.6 km/h with the boom raised or extended. Maximum gradeability is 45 percent. The 12.08 m working range — 37 percent more than the XGA16K-AS at 8.82 m — extends up-and-over access for tall steel structures, petrochemical equipment, and stadium rigging work.
Positioned between the 16.63 m XGA16K-AS and 26.6 m XGA26K-AS in the AS line. The AS chassis platform shares parts with siblings. Suited to construction, steel structures, petrochemical maintenance, stadium and venue install, and rental fleets where the 20 m envelope covers a wide span of low-to-mid-rise access work.
