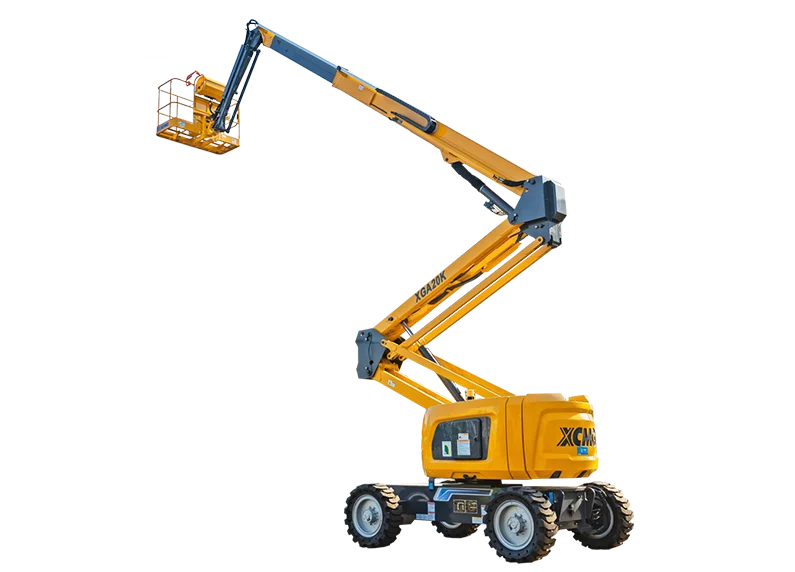

XCMG XGA20K Articulating Boom Lift

350 kg restricted-reach load capacity and 256 kg unrestricted-envelope load — the highest load rating in XCMG's 20 m articulating boom lift class. 30 kg more restricted load than the XGA20K-AS (320 kg restricted), 30 kg more unrestricted (226 kg). Supports three-occupant configurations at restricted reach where the AS sibling caps at two-operator loads.

Sigma Y-shaped linkage folding hybrid arm structure — compact stowed layout (8,520 x 2,300 x 2,400 mm) and efficient obstacle crossing. Transport dimensions 6,300 x 2,300 x 3,100 mm fit standard low-bed trailers. The Y-linkage design folds the arm into a tighter envelope than straight-stick boom designs.

Four-wheel drive with 45 percent maximum gradeability and standard axle balance — outperforms 2WD comparable boom lifts on muddy, gravel, and graded surfaces. Axle balance provides chassis-level pitch stability when one wheel passes over uneven ground. Suited to outdoor industrial yards, construction sites, and infrastructure projects with rough access.

180-degree platform rotation — 20 degrees more than the 160-degree rotation on the larger XGA26K/XGA26K1. Operator can swing the platform a full half-circle to face any work direction without slewing the turntable, supporting work patterns where the boom is positioned and the operator works alternately on opposite sides of the platform.

Rated for 2 or 3 occupants depending on platform load configuration. 3-occupant rating supports trade crews where two workers carry materials and a third performs install — typical for cladding, MEP rough-in, and steel connection work. Most 20 m class articulating boom lifts cap at 2 occupants.
