20.18 m extended-range diesel hybrid articulating boom lift. 18.18 m platform height, 11.14 m horizontal working range, 320 kg unrestricted lift capacity. 2 occupants. Extended-range hybrid system drives the electric drivetrain — work-while-charging operation, 20+ day full-fuel range per source. 360° turntable rotation, 160° platform rotation. 6 km/h stowed travel speed, 40 percent gradeability (22°). Stowed envelope 8.07 m × 2.30 m × 2.57 m. 9,500 kg dead weight, 2,500 mm wheelbase. Suited for off-grid project sites and markets with intermittent power.

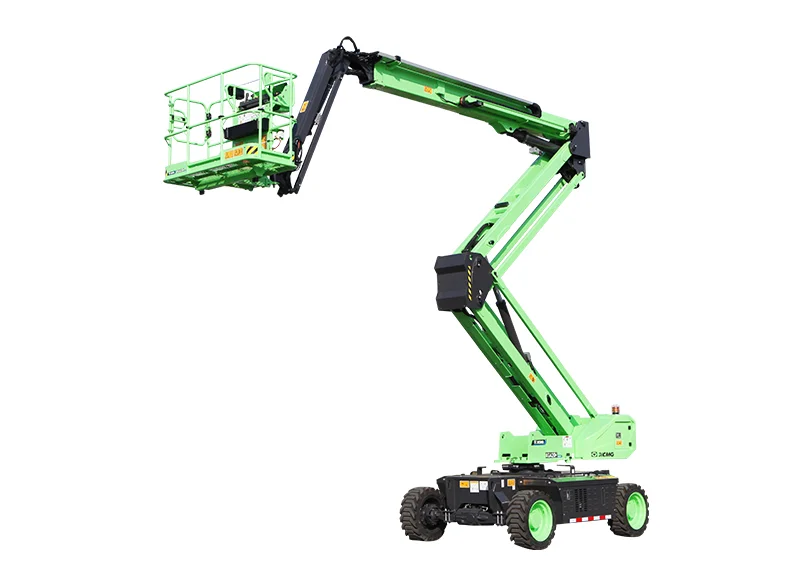

The XCMG XGA20H is a 20.18 m extended-range diesel hybrid articulating boom lift built for outdoor mid-rise construction, infrastructure maintenance, and project sites where battery-only run time is the binding constraint.
18.18 m platform height, 11.14 m horizontal working range, 320 kg unrestricted lift capacity (higher single-mode capacity than the 256 kg AC-electric XGA20ACK sibling at the same metre class). 2 occupants. Extended-range hybrid system — diesel generator set drives the electric drivetrain, supporting work-while-charging operation and a full-fuel range of 20+ days per source. 360° turntable rotation, 160° platform rotation. 6 km/h stowed travel speed (25 percent faster than the 4.8 km/h on the AC-electric XGA20ACK). 40 percent gradeability (22°). 750 mm tailswing axle retracted/extended. Stowed envelope 8.07 m × 2.30 m × 2.57 m. 9,500 kg dead weight, 2,500 mm wheelbase. Suited for projects where the AC charging infrastructure is unreliable, off-grid work sites, and rental fleet duty in markets with intermittent power availability.
